9HVA0412P3J001

Active

Sanyo Denki America Inc.

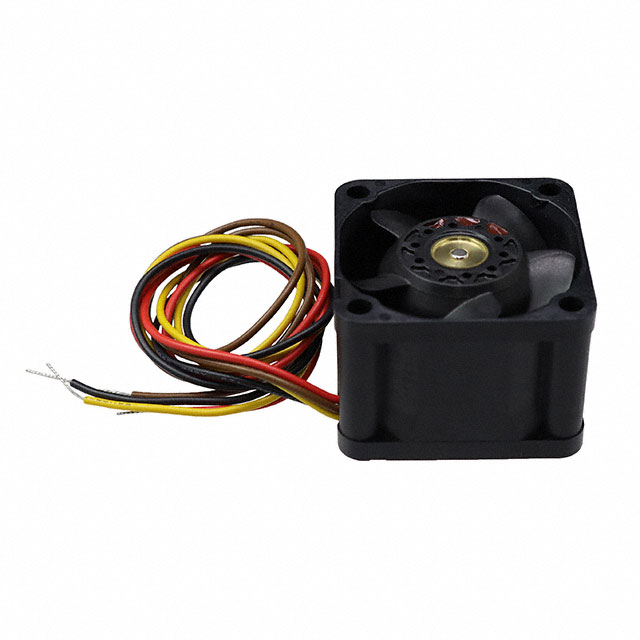

FAN AXIAL 40X28MM 12VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 40X28MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9HVA0412P3J001

Air Flow	37.1 CFM
Air Flow	1.04 mł/min
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	2.6 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Material - Blade	Plastic
Material - Frame	Plastic
Noise	71 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	31.2 W
RPM	38000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	9.24 in H2O
Static Pressure	2300 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	10.2 VDC
Width [y]	28 mm

Part	Voltage - Rated	Material - Frame	Approval Agency	Fan Type	Power (Watts)	Noise	Static Pressure	Static Pressure	Features	RPM	Width [y]	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Air Flow	Air Flow	Current Rating (Amps)	Material - Blade	Termination	Voltage Range [Min]	Voltage Range [Max]
Sanyo Denki America Inc. 9HVA0412P3J001	12 VDC	Plastic	cURus TUV	Tubeaxial	31.2 W	71 dB(A)	9.24 in H2O	2300 Pa	Locked Rotor Protection PWM Control Speed Sensor (Tach)	38000 RPM	28 mm	40 mm	Square	40 mm	Ball	-20 °C	70 °C	-20 C	70 °C	37.1 CFM	1.04 mł/min	2.6 A	Plastic	4 Wire Leads	10.2 VDC	13.8 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 37.1 CFM (1.04m³/min) 4 Wire Leads
