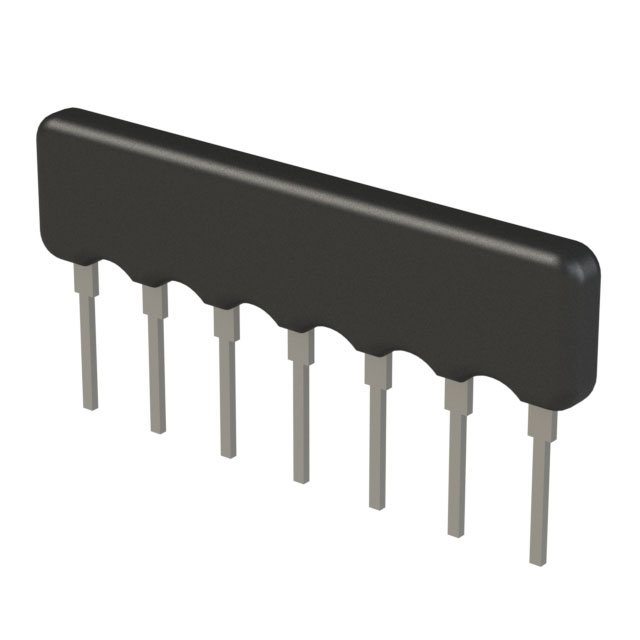

SIL07E471J
ActiveTE Connectivity Passive Product
RES ARRAY 6 RES 470 OHM 7SIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SIL07E471J
ActiveTE Connectivity Passive Product
RES ARRAY 6 RES 470 OHM 7SIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SIL07E471J |
|---|---|
| Circuit Type | Bussed |
| Height - Seated (Max) [Max] [z] | 5.08 mm |
| Height - Seated (Max) [Max] [z] | 0.2 " |
| Mounting Type | Through Hole |
| Number of Pins | 7 |
| Number of Resistors | 6 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 7-SIP |
| Power Per Element | 200 mW |
| Resistance (Ohms) | 470 Ohms |
| Size / Dimension [x] | 0.7 in |
| Size / Dimension [x] | 17.78 mm |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SIL07E Series
470 Ohm ±5% 200mW Power Per Element Bussed 6 Resistor Network/Array ±200ppm/°C 7-SIP
