Q-6801F0003108I

Active

Amphenol Custom Cable

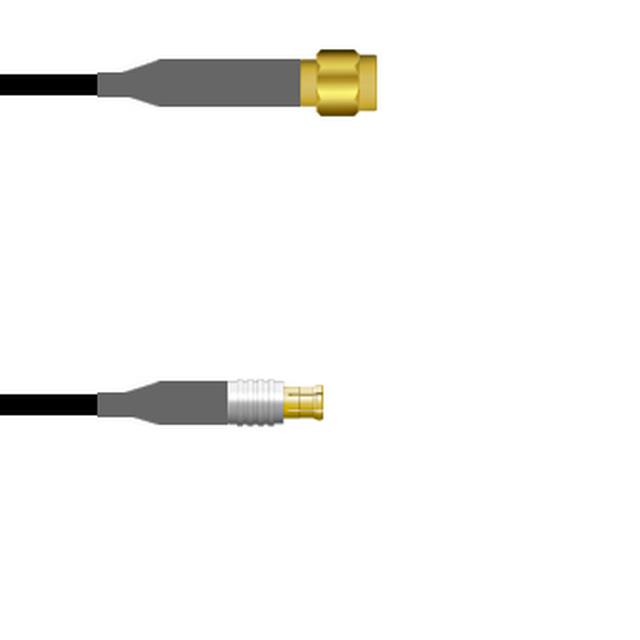

CBL ASSY RPSMA-MCX PLUG-PLUG 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-6801F0003108I

Active

Amphenol Custom Cable

CBL ASSY RPSMA-MCX PLUG-PLUG 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-6801F0003108I

1st Connector	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	MCX Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	RP-SMA to MCX

Q-6801F0 Series

Part	1st Connector Mounting Type	Features	Frequency - Max [Max]	2nd Contact Gender	Style	Connector Impedance	2nd Connector Mounting Type	2nd Connector	Cable Impedance	Length	Length	Overall Impedance	Color	Cable Type	1st Contact Gender	1st Connector	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-6801F0003006I	Free Hanging (In-Line)	Shielded	1 GHz	Male	RP-SMA to MCX	50 Ohms	Free Hanging (In-Line)	MCX Plug	50 Ohms	152.4 mm	6 in	50 Ohms	Black	RG-174	Female	RP-SMA Plug
Amphenol Custom Cable Q-6801F00031.5M	Free Hanging (In-Line)	Shielded	1 GHz	Male	RP-SMA to MCX	50 Ohms	Free Hanging (In-Line)	MCX Plug	50 Ohms	1.5 m	59.1 in	50 Ohms	Black	RG-174	Female	RP-SMA Plug	4.9 ft
Amphenol Custom Cable Q-6801F0005024I	Free Hanging (In-Line)	Shielded	3 GHz	Male	RP-SMA to MCX	50 Ohms	Free Hanging (In-Line)	MCX Plug	50 Ohms	609.6 mm	24 "	50 Ohms	Copper	RG-316	Female	RP-SMA Plug
Amphenol Custom Cable Q-6801F0003.25M	Free Hanging (In-Line)	Shielded	1 GHz	Male	RP-SMA to MCX	50 Ohms	Free Hanging (In-Line)	MCX Plug	50 Ohms			50 Ohms	Black	RG-174	Female	RP-SMA Plug		9.843 "	250 mm
Amphenol Custom Cable Q-6801F0003108I	Free Hanging (In-Line)	Shielded	1 GHz	Male	RP-SMA to MCX	50 Ohms	Free Hanging (In-Line)	MCX Plug	50 Ohms	2.7 m	108 in	50 Ohms	Black	RG-174	Female	RP-SMA Plug	9 ft
Amphenol Custom Cable Q-6801F0003084I	Free Hanging (In-Line)	Shielded	1 GHz	Male	RP-SMA to MCX	50 Ohms	Free Hanging (In-Line)	MCX Plug	50 Ohms	2.1 m	84 in	50 Ohms	Black	RG-174	Female	RP-SMA Plug	7 ft
Amphenol Custom Cable Q-6801F0003009I	Free Hanging (In-Line)	Shielded	1 GHz	Male	RP-SMA to MCX	50 Ohms	Free Hanging (In-Line)	MCX Plug	50 Ohms	228.6 mm	9 "	50 Ohms	Black	RG-174	Female	RP-SMA Plug
Amphenol Custom Cable Q-6801F0005001M	Free Hanging (In-Line)	Shielded	3 GHz	Male	RP-SMA to MCX	50 Ohms	Free Hanging (In-Line)	MCX Plug	50 Ohms	1 m	39.4 in	50 Ohms	Copper	RG-316	Female	RP-SMA Plug	3.3 ft
Amphenol Custom Cable Q-6801F00032.5M	Free Hanging (In-Line)	Shielded	1 GHz	Male	RP-SMA to MCX	50 Ohms	Free Hanging (In-Line)	MCX Plug	50 Ohms	2.5 m	98.4 in	50 Ohms	Black	RG-174	Female	RP-SMA Plug	8.2 '
Amphenol Custom Cable Q-6801F00030.5M	Free Hanging (In-Line)	Shielded	1 GHz	Male	RP-SMA to MCX	50 Ohms	Free Hanging (In-Line)	MCX Plug	50 Ohms	50 cm	19.69 "	50 Ohms	Black	RG-174	Female	RP-SMA Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 70.91
		25	$ 69.53
		50	$ 68.15
		100	$ 66.77
		250	$ 65.39

Description

General part information

Q-6801F0 Series

Cable Assembly Coaxial RP-SMA to MCX RG-174 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
