SN204E

Active

Comet America, LP

PT1000TR160/E,TEMP PROBE 20 M

Search across all available documentation for this part.

Active

Comet America, LP

PT1000TR160/E,TEMP PROBE 20 M

Technical Specifications

Parameters and characteristics for this part

Specification	SN204E

Conductor Type	Non-Grounded
Diameter - Protective Tube [diameter]	5.7 mm
Element Type	Pt1000
Length - Lead Wire	65.617 ft
Length - Lead Wire	20 m
Length - Protective Tube [x]	20 mm
Temperature Range [Max]	80 °C
Temperature Range [Min]	-40 °F
Terminal Type	Exposed Lead Wires

Part	Element Type	Terminal Type	Length - Lead Wire	Length - Lead Wire	Length - Protective Tube [x]	Conductor Type	Temperature Range [Max]	Temperature Range [Min]	Diameter - Protective Tube [diameter]
Comet America, LP SN204E	Pt1000	Exposed Lead Wires	65.617 ft	20 m	20 mm	Non-Grounded	80 °C	-40 °F	5.7 mm
Comet America, LP SN204C	Pt1000	Exposed Lead Wires	65.617 ft	20 m	20 mm	Non-Grounded	80 °C	-40 °F	5.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

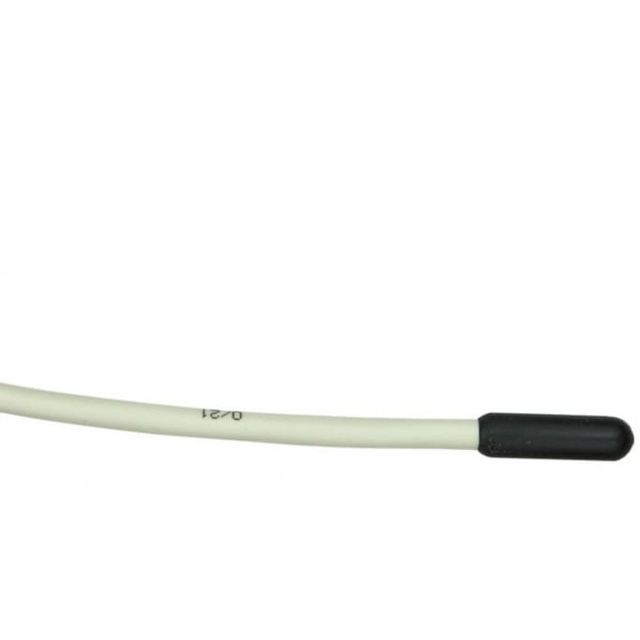

Pt1000 Temperature Sensor -40°C ~ 80°C Non-Grounded Exposed Lead Wires
