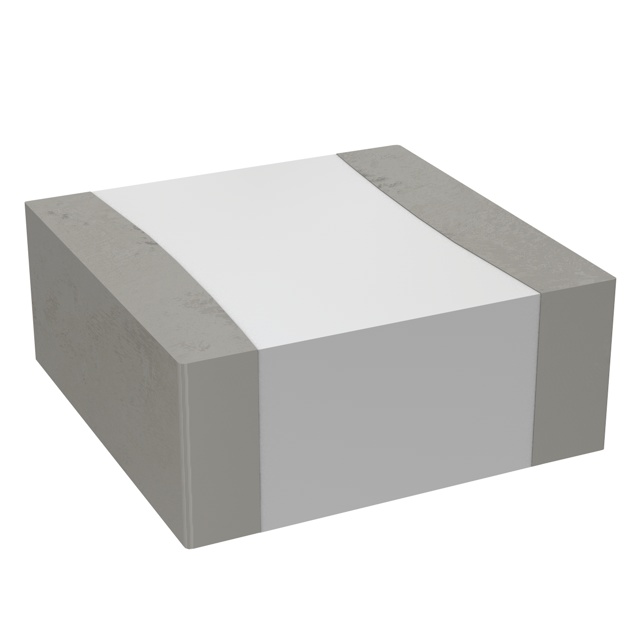

GQM22M5C2H560JB01L

Active

Murata Power Solutions Inc.

CAP CER 56PF 500V C0G/NP0 1111

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsGQM22M5C2H560JB01 Ref Sheet Datasheet

GQM22M5C2H560JB01L

Active

Murata Power Solutions Inc.

CAP CER 56PF 500V C0G/NP0 1111

Deep-Dive with AI

DocumentsGQM22M5C2H560JB01 Ref Sheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GQM22M5C2H560JB01L

Applications	High Frequency, Microwave, RF
Capacitance	56 pF
Features	Low Loss, High Q
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1111 (2828 Metric)
Size / Dimension [x]	0.11 in
Size / Dimension [x]	2.8 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Temperature Coefficient	NP0, C0G
Thickness (Max) [Max]	1.35 mm
Thickness (Max) [Max]	0.053 in
Tolerance	5 %
Voltage - Rated	500 V

GQM22M5C2H Series

Part	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Thickness (Max) [Max]	Thickness (Max) [Max]	Capacitance	Features	Voltage - Rated	Tolerance	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Applications
Murata Power Solutions Inc. GQM22M5C2HR75BB01L	1111 (2828 Metric)	0.11 in	0.11 in	2.8 mm	2.8 mm	1.35 mm	0.053 in	0.75 pF	High Q Low Loss	500 V	0.1 pF	C0G NP0	-55 °C	125 °C	MLCC Surface Mount	High Frequency Microwave RF
Murata Power Solutions Inc. GQM22M5C2H1R5CB01L	1111 (2828 Metric)	0.11 in	0.11 in	2.8 mm	2.8 mm	1.35 mm	0.053 in	1.5 pF	High Q Low Loss	500 V	0.25 pF	C0G NP0	-55 °C	125 °C	MLCC Surface Mount	High Frequency Microwave RF
Murata Power Solutions Inc. GQM22M5C2H4R0CB01K	1111 (2828 Metric)	0.11 in	0.11 in	2.8 mm	2.8 mm	1.35 mm	0.053 in	4 pF	High Q Low Loss	500 V	0.25 pF	C0G NP0	-55 °C	125 °C	MLCC Surface Mount	High Frequency Microwave RF
Murata Power Solutions Inc. GQM22M5C2H390JB01L	1111 (2828 Metric)	0.11 in	0.11 in	2.8 mm	2.8 mm	1.35 mm	0.053 in	39 pF	High Q Low Loss	500 V	5 %	C0G NP0	-55 °C	125 °C	MLCC Surface Mount	High Frequency Microwave RF
Murata Power Solutions Inc. GQM22M5C2H101GB01L	1111 (2828 Metric)	0.11 in	0.11 in	2.8 mm	2.8 mm	1.35 mm	0.053 in	100 pF	High Q Low Loss	500 V	2 %	C0G NP0	-55 °C	125 °C	MLCC Surface Mount	High Frequency Microwave RF
Murata Power Solutions Inc. GQM22M5C2H5R6BB01K	1111 (2828 Metric)	0.11 in	0.11 in	2.8 mm	2.8 mm	1.35 mm	0.053 in	5.6 pF	High Q Low Loss	500 V	0.1 pF	C0G NP0	-55 °C	125 °C	MLCC Surface Mount	High Frequency Microwave RF
Murata Power Solutions Inc. GQM22M5C2H3R9CB01K	1111 (2828 Metric)	0.11 in	0.11 in	2.8 mm	2.8 mm	1.35 mm	0.053 in	3.9 pF	High Q Low Loss	500 V	0.25 pF	C0G NP0	-55 °C	125 °C	MLCC Surface Mount	High Frequency Microwave RF
Murata Power Solutions Inc. GQM22M5C2H560JB01L	1111 (2828 Metric)	0.11 in	0.11 in	2.8 mm	2.8 mm	1.35 mm	0.053 in	56 pF	High Q Low Loss	500 V	5 %	C0G NP0	-55 °C	125 °C	MLCC Surface Mount	High Frequency Microwave RF
Murata Power Solutions Inc. GQM22M5C2H180FB01L	1111 (2828 Metric)	0.11 in	0.11 in	2.8 mm	2.8 mm	1.35 mm	0.053 in	18 pF	High Q Low Loss	500 V	1 %	C0G NP0	-55 °C	125 °C	MLCC Surface Mount	High Frequency Microwave RF
Murata Power Solutions Inc. GQM22M5C2H2R2CB01L	1111 (2828 Metric)	0.11 in	0.11 in	2.8 mm	2.8 mm	1 mm	0.039 in	2.2 pF	High Q Low Loss	500 V	0.25 pF	C0G NP0	-55 °C	125 °C	MLCC Surface Mount	High Frequency Microwave RF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.22
		10	$ 0.92
		50	$ 0.83
		100	$ 0.68
		500	$ 0.55
	Digi-Reel®	1	$ 1.22
		10	$ 0.92
		50	$ 0.83
		100	$ 0.68
		500	$ 0.55
	Tape & Reel (TR)	1000	$ 0.48
		2000	$ 0.45
		5000	$ 0.43
		10000	$ 0.42

Description

General part information

GQM22M5C2H Series

56 pF ±5% 500V Ceramic Capacitor C0G, NP0 1111 (2828 Metric)

Documents

Technical documentation and resources

GQM22M5C2H560JB01 Ref Sheet

Datasheet
