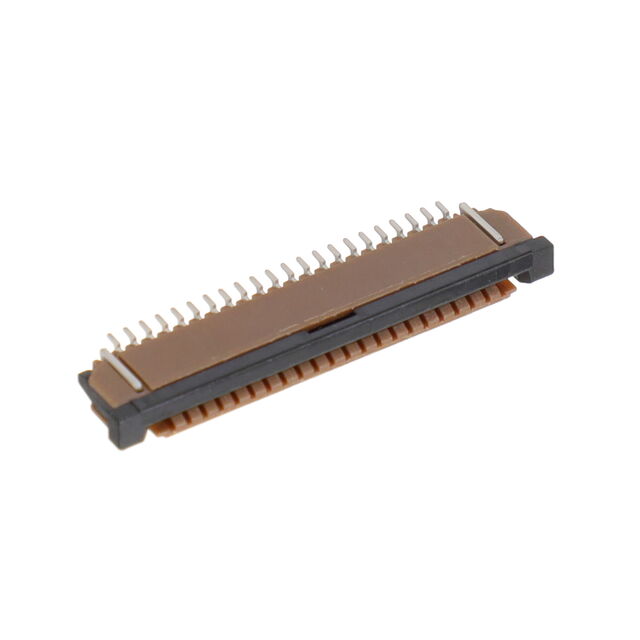

SFW22R-2STE1LF

Active

Amphenol ICC (FCI)

CONN FFC FPC TOP 22POS 1MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

Documentshttps://cdn.amphenol-cs.com/media/wysiwyg/files/drawing/sc-sfw10 Other Related Document fci basics ffc fpc productpresentation Other Related Document +2

SFW22R-2STE1LF

Active

Amphenol ICC (FCI)

CONN FFC FPC TOP 22POS 1MM R/A

Deep-Dive with AI

Documentshttps://cdn.amphenol-cs.com/media/wysiwyg/files/drawing/sc-sfw10 Other Related Document fci basics ffc fpc productpresentation Other Related Document +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFW22R-2STE1LF

Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, Top
Contact Finish	Tin
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	0.106 in
Height Above Board [z]	2.7 mm
Housing Color	Brown
Housing Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	22 positions
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Kinked Pin
Voltage Rating	100 V

SFW22R Series

Part	Pitch [x]	Pitch [x]	Locking Feature	Housing Material	FFC, FCB Thickness	Height Above Board [z]	Height Above Board [z]	Termination	Number of Positions	Cable End Type	Mounting Type	Connector/Contact Type	Flat Flex Type	Housing Color	Mating Cycles	Actuator Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Contact Material	Voltage Rating	Actuator Color	Features	FFC, FCB Thickness [z]
Amphenol ICC (FCI) SFW22R-5STE1	0.039 in	1 mm	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	0.106 in	2.7 mm	Solder	22 positions	Tapered	Surface Mount Right Angle	Contacts Bottom	CIC
Amphenol ICC (FCI) SFW22R-2STE1LF	0.039 in	1 mm		Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	0.106 in	2.7 mm	Kinked Pin	22 positions	Straight Tapered	Surface Mount Right Angle	Contacts Top	FFC FPC	Brown	20	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	105 ░C	-55 °C	Tin	Phosphor Bronze	100 V
Amphenol ICC (FCI) SFW22R-6STE1LF	0.039 in	1 mm	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	0.106 in	2.7 mm	Solder	22 positions	Tapered	Surface Mount Right Angle	Contacts Top	CIC	Brown	10	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	105 ░C	-55 °C	Tin	Phosphor Bronze	100 V	Beige
Amphenol ICC (FCI) SFW22R-1STAE1LF	0.039 in	1 mm	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	0.33 mm	0.106 in	2.7 mm	Solder	22 positions	Tapered	Surface Mount Right Angle	Contacts Bottom	FPC	Brown	20	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	105 ░C	-55 °C	Gold	Phosphor Bronze	100 V	Brown
Amphenol ICC (FCI) SFW22R-4STE1LF	0.039 in	1 mm	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled		0.106 in	2.7 mm	Solder	22 positions	Notched Tapered	Surface Mount Right Angle	Contacts Top	FFC FPC	Black	20	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	105 ░C	-55 °C	Tin	Phosphor Bronze	100 V	Brown	Solder Retention Zero Insertion Force (ZIF)	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFW22R-2STAE1LF	0.039 in	1 mm	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled		0.106 in	2.7 mm	Solder	22 positions	Notched	Surface Mount Right Angle	Contacts Top	FPC	Brown	20	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	105 ░C	-55 °C	Gold	Phosphor Bronze	100 V	Brown		0.3 mm 0.33 mm
Amphenol ICC (FCI) SFW22R-2STE1	0.039 in	1 mm	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled		0.106 in	2.7 mm	Solder	22 positions	Straight Tapered	Surface Mount Right Angle	Contacts Top	FFC FPC	Brown		Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0			Tin Alloy	Phosphor Bronze		Black		0.3 mm 0.33 mm
Amphenol ICC (FCI) SFW22R-3STE9LF	0.039 in	1 mm	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	0.33 mm	0.106 in	2.7 mm	Solder	22 positions	Notched	Surface Mount Right Angle	Contacts Bottom	FPC	Black	20	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	105 ░C	-55 °C	Tin	Phosphor Bronze	100 V	Brown
Amphenol ICC (FCI) SFW22R-3STE1	0.039 in	1 mm	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled		0.106 in	2.7 mm	Solder	22 positions	Notched	Surface Mount Right Angle	Contacts Bottom	FFC FPC	Black		Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0			Tin Alloy	Phosphor Bronze		Brown		0.3 mm 0.33 mm
Amphenol ICC (FCI) SFW22R-4STAE1LF	0.039 in	1 mm	Slide Lock	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	0.106 in	2.7 mm	Solder	22 positions	Tapered	Surface Mount Right Angle	Contacts Top	FPC	Black	20	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	105 ░C	-55 °C	Gold	Phosphor Bronze	100 V	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.15
		10	$ 0.67
		25	$ 0.55
		50	$ 0.51
		100	$ 0.47
		250	$ 0.46
		500	$ 0.45
		1000	$ 0.45
	Digi-Reel®	1	$ 1.15
		10	$ 0.67
		25	$ 0.55
		50	$ 0.51
		100	$ 0.47
		250	$ 0.46
		500	$ 0.45
		1000	$ 0.45
	Tape & Reel (TR)	2000	$ 0.40

Description

General part information

SFW22R Series

22 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
