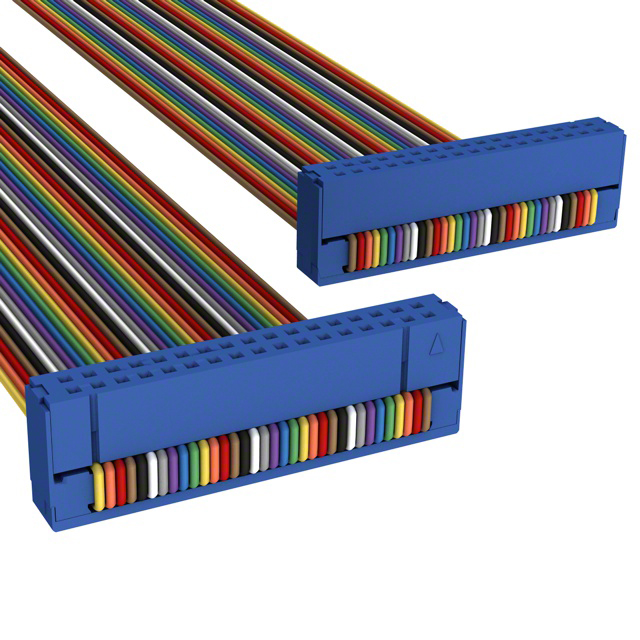

C3BBG-3406M
ActiveCW Industries
IDC CABLE - CSR34G/AE34M/CSR34G
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C3BBG-3406M
ActiveCW Industries
IDC CABLE - CSR34G/AE34M/CSR34G
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C3BBG-3406M |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | Socket to Socket |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Strain Relief |
| Length | 152.4 mm |
| Length | 6 " |
| Length | 0.5 ' |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.12 | |
| 10 | $ 16.27 | |||
| 25 | $ 14.72 | |||
| 50 | $ 13.68 | |||
| 100 | $ 12.73 | |||
| 250 | $ 11.62 | |||
| 500 | $ 10.87 | |||
Description
General part information
C3BBG-3 Series
34 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
