T9GV2L14-48

Active

TE Connectivity Potter & Brumfield Relays

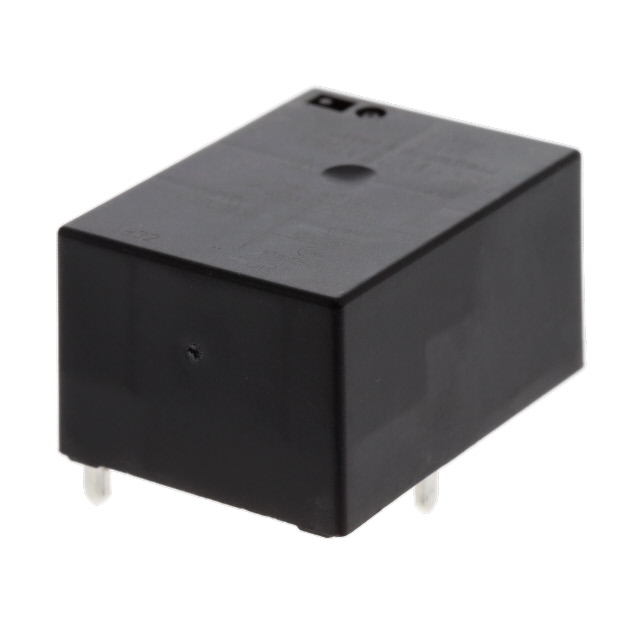

RELAY GEN PURPOSE SPST 20A 48V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T9GV2L14-48

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 20A 48V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T9GV2L14-48

Approval Agency	CQC, VDE, cURus
Coil Current	18.8 mA
Coil Insulation	Class B
Coil Resistance	2500 Ohms
Coil Type	Non Latching
Coil Voltage	48 VDC
Contact Form	SPST-NC (1 Form B)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	20 A
Load - Max Switching [Max]	9600 VA
Mounting Type	Through Hole
Must Operate Voltage	36 VDC
Must Release Voltage	4.8 VDC
Operate Time	15 ms
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	22 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage	480 VAC
Termination Style	PC Pin

T9GV2 Series

Part	Mounting Type	Must Operate Voltage	Coil Insulation	Contact Material	Switching Voltage	Coil Type	Coil Voltage	Coil Resistance	Must Release Voltage	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Termination Style	Coil Current	Release Time	Contact Rating (Current)	Approval Agency	Load - Max Switching [Max]	Relay Type	Seal Rating	Contact Form
TE Connectivity Potter & Brumfield Relays T9GV2L24-12	Through Hole	9 VDC	Class B	Silver Tin Oxide (AgSnO)	480 VAC	Non Latching	12 VDC	160 Ohms	1.2 VDC	15 ms	-40 °C	105 ░C	PC Pin Quick Connect	0.25 in	75 mA	22 ms	20 A	CQC cURus VDE	9600 VA	General Purpose	Sealed - Flux Protection	SPST-NC (1 Form B)
TE Connectivity Potter & Brumfield Relays T9GV2L14-48	Through Hole	36 VDC	Class B	Silver Tin Oxide (AgSnO)	480 VAC	Non Latching	48 VDC	2500 Ohms	4.8 VDC	15 ms	-40 °C	105 ░C	PC Pin		18.8 mA	22 ms	20 A	CQC cURus VDE	9600 VA	General Purpose	Sealed - Flux Protection	SPST-NC (1 Form B)
TE Connectivity Potter & Brumfield Relays T9GV2L24-18	Through Hole	13.5 VDC	Class B	Silver Tin Oxide (AgSnO)	480 VAC	Non Latching	18 VDC	360 Ohms	1.8 VDC	15 ms	-40 °C	105 ░C	PC Pin Quick Connect	0.25 in	50 mA	22 ms	20 A	CQC cURus VDE	9600 VA	General Purpose	Sealed - Flux Protection	SPST-NC (1 Form B)
TE Connectivity Potter & Brumfield Relays T9GV2L14-12	Through Hole	9 VDC	Class B	Silver Tin Oxide (AgSnO)	480 VAC	Non Latching	12 VDC	160 Ohms	1.2 VDC	15 ms	-40 °C	105 ░C	PC Pin		75 mA	22 ms	20 A	CQC cURus VDE	9600 VA	General Purpose	Sealed - Flux Protection	SPST-NC (1 Form B)
TE Connectivity Potter & Brumfield Relays T9GV2L24-24	Through Hole	18 VDC	Class B	Silver Tin Oxide (AgSnO)	480 VAC	Non Latching	24 VDC	640 Ohms	2.4 VDC	15 ms	-40 °C	105 ░C	PC Pin Quick Connect	0.25 in	37.5 mA	22 ms	20 A	CQC cURus VDE	9600 VA	General Purpose	Sealed - Flux Protection	SPST-NC (1 Form B)
TE Connectivity Potter & Brumfield Relays T9GV2L14-18	Through Hole	13.5 VDC	Class B	Silver Tin Oxide (AgSnO)	480 VAC	Non Latching	18 VDC	360 Ohms	1.8 VDC	15 ms	-40 °C	105 ░C	PC Pin		50 mA	22 ms	20 A	CQC cURus VDE	9600 VA	General Purpose	Sealed - Flux Protection	SPST-NC (1 Form B)
TE Connectivity Potter & Brumfield Relays T9GV2L14-110	Through Hole	82.5 VDC	Class B	Silver Tin Oxide (AgSnO)	480 VAC	Non Latching	110 VDC	13.4 kOhms	11 VDC	15 ms	-40 °C	105 ░C	PC Pin		8.2 mA	22 ms	20 A	CQC cURus VDE	9600 VA	General Purpose	Sealed - Flux Protection	SPST-NC (1 Form B)
TE Connectivity Potter & Brumfield Relays T9GV2L24-22	Through Hole	16.5 VDC	Class B	Silver Tin Oxide (AgSnO)	480 VAC	Non Latching	22 VDC	538 Ohms	2.2 VDC	15 ms	-40 °C	105 ░C	PC Pin Quick Connect	0.25 in	41 mA	22 ms	20 A	CQC cURus VDE	9600 VA	General Purpose	Sealed - Flux Protection	SPST-NC (1 Form B)
TE Connectivity Potter & Brumfield Relays T9GV2L24-15	Through Hole	11.25 VDC	Class B	Silver Tin Oxide (AgSnO)	480 VAC	Non Latching	15 VDC	249 Ohms	1.5 VDC	15 ms	-40 °C	105 ░C	PC Pin Quick Connect	0.25 in	60 mA	22 ms	20 A	CQC cURus VDE	9600 VA	General Purpose	Sealed - Flux Protection	SPST-NC (1 Form B)
TE Connectivity Potter & Brumfield Relays T9GV2L14-9	Through Hole	6.75 VDC	Class B	Silver Tin Oxide (AgSnO)	480 VAC	Non Latching	9 VDC	90 Ohms	0.9 VDC	15 ms	-40 °C	105 ░C	PC Pin		100 mA	22 ms	20 A	CQC cURus VDE	9600 VA	General Purpose	Sealed - Flux Protection	SPST-NC (1 Form B)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.96
		10	$ 4.42
		30	$ 4.18
		50	$ 4.08
		100	$ 3.94
		250	$ 3.76
		500	$ 3.63
		1000	$ 3.51

Description

General part information

T9GV2 Series

General Purpose Relay SPST-NC (1 Form B) 48VDC Coil Through Hole
