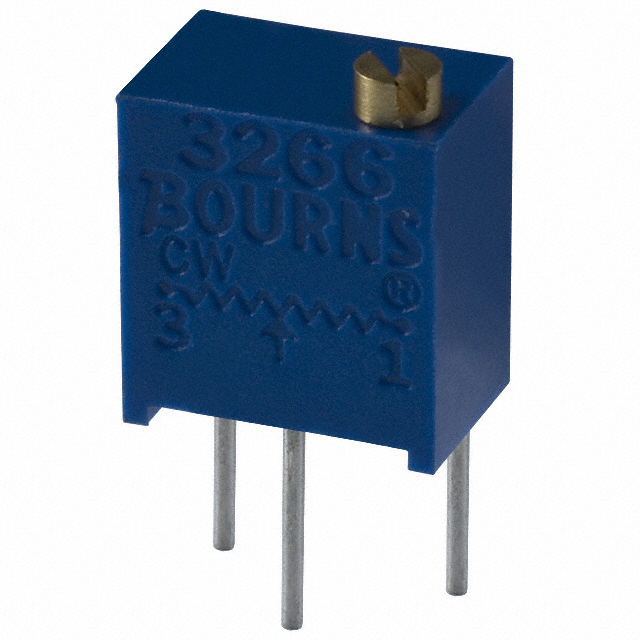

3266W-1-101LF

Active

Bourns Inc.

TRIMMER 100 OHM 0.25W PC PIN TOP

Search across all available documentation for this part.

Active

Bourns Inc.

TRIMMER 100 OHM 0.25W PC PIN TOP

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Temperature Coefficient	Tolerance	Resistive Material	Resistance	Termination Style	Adjustment Type	Power (Watts)	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Number of Turns
Bourns Inc. 3266W-1-101LF	Through Hole	100 ppm/°C	10 %	Cermet	100 Ohms	PC Pins	Top Adjustment	0.25 W	250 mW	0.17 in	6.35 mm	0.25 "	4.32 mm	12
Bourns Inc. 3266W-1-105LF	Through Hole	100 ppm/°C	10 %	Cermet	1 MOhms	PC Pins	Top Adjustment	0.25 W	250 mW	0.17 in	6.35 mm	0.25 "	4.32 mm	12
Bourns Inc. 3266W-1-253LF	Through Hole	100 ppm/°C	10 %	Cermet	25 kOhms	PC Pins	Top Adjustment	0.25 W	250 mW	0.17 in	6.35 mm	0.25 "	4.32 mm	12
Bourns Inc. 3266W-1-103	Through Hole	100 ppm/°C	10 %	Cermet	10000 Ohms	PC Pins	Top Adjustment	0.25 W	250 mW	0.17 in	6.35 mm	0.25 "	4.32 mm	12
Bourns Inc. 3266W-1-201	Through Hole	100 ppm/°C	10 %	Cermet	200 Ohms	PC Pins	Top Adjustment	0.25 W	250 mW	0.17 in	6.35 mm	0.25 "	4.32 mm	12
Bourns Inc. 3266W-1-202LF	Through Hole	100 ppm/°C	10 %	Cermet	2 kOhms	PC Pins	Top Adjustment	0.25 W	250 mW	0.17 in	6.35 mm	0.25 "	4.32 mm	12
Bourns Inc. 3266W-1-203	Through Hole	100 ppm/°C	10 %	Cermet	20 kOhms	PC Pins	Top Adjustment	0.25 W	250 mW	0.17 in	6.35 mm	0.25 "	4.32 mm	12
Bourns Inc. 3266W-1-503	Through Hole	100 ppm/°C	10 %	Cermet	50 kOhms	PC Pins	Top Adjustment	0.25 W	250 mW	0.17 in	6.35 mm	0.25 "	4.32 mm	12
Bourns Inc. 3266W-1-501	Through Hole	100 ppm/°C	10 %	Cermet	500 Ohms	PC Pins	Top Adjustment	0.25 W	250 mW	0.17 in	6.35 mm	0.25 "	4.32 mm	12
Bourns Inc. 3266W-1-202	Through Hole	100 ppm/°C	10 %	Cermet	2 kOhms	PC Pins	Top Adjustment	0.25 W	250 mW	0.17 in	6.35 mm	0.25 "	4.32 mm	12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 Ohms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Cermet 12.0 Turn Top Adjustment
