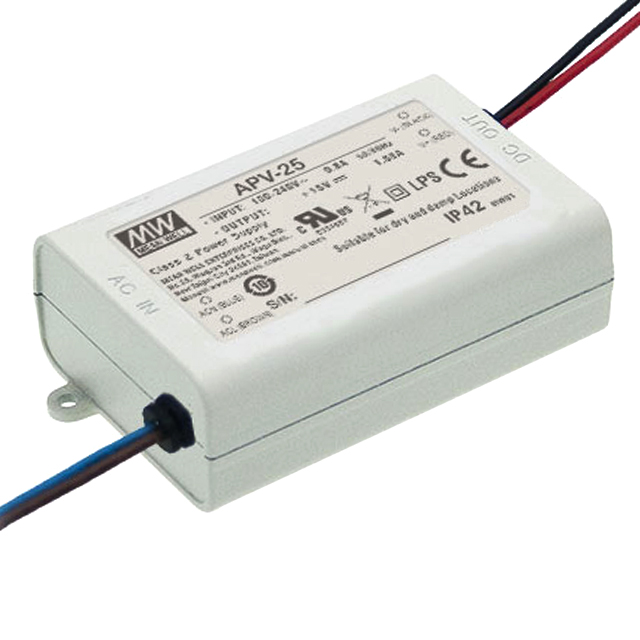

APV-25-15

Active

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 15V 1.68A

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 15V 1.68A

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Voltage - Isolation	Termination Style	Efficiency	Voltage - Input (Max) [Max]	Topology	Ratings	Voltage - Output	Voltage - Input (Min) [Min]	Approval Agency	Number of Outputs	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Features
MEAN WELL USA Inc. APV-25-15	Chassis Mount	3000 V	Wire Leads	83 %	264 VAC	AC DC Converter	IP42	15 VDC	90 VAC	CE cURus	1	1.68 A	3.31 "	57 mm	29.5 mm	84 mm	2.24 "	1.16 "	Constant Voltage	25 W	70 °C	-30 ░C	OCP OVP SCP
MEAN WELL USA Inc. APV-25-12	Chassis Mount	3000 V	Wire Leads		264 VAC	AC DC Converter	IP42	12 V	90 VAC	CE cURus	1	2.1 A	3.31 "	57 mm	29.5 mm	84 mm	2.24 "	1.16 "	Constant Voltage	25 W	70 °C	-30 ░C	OCP OVP SCP
MEAN WELL USA Inc. APV-25-24	Chassis Mount	3000 V	Wire Leads	83 %	264 VAC	AC DC Converter	IP42	24 V	90 VAC	CE cURus	1	1.05 A	3.31 "	57 mm	29.5 mm	84 mm	2.24 "	1.16 "	Constant Voltage	25 W	70 °C	-30 ░C	OCP OVP SCP
MEAN WELL USA Inc. APV-25-5	Chassis Mount	3000 V	Wire Leads	75.5 %	264 VAC	AC DC Converter	IP42	5 V	90 VAC	CE cURus	1	3.5 A	3.31 "	57 mm	29.5 mm	84 mm	2.24 "	1.16 "	Constant Voltage	18 W	70 °C	-30 ░C	OCP OVP SCP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.68A 15V Constant Voltage LED Driver AC DC Converter Topology 1 Output
