Technical Specifications
Parameters and characteristics for this part
| Specification | SZNSP8814LMTWTAG |
|---|---|
| Applications | Ethernet |
| Capacitance @ Frequency | 2 pF |
| Grade | Automotive |
| Mounting Type | Wettable Flank, Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

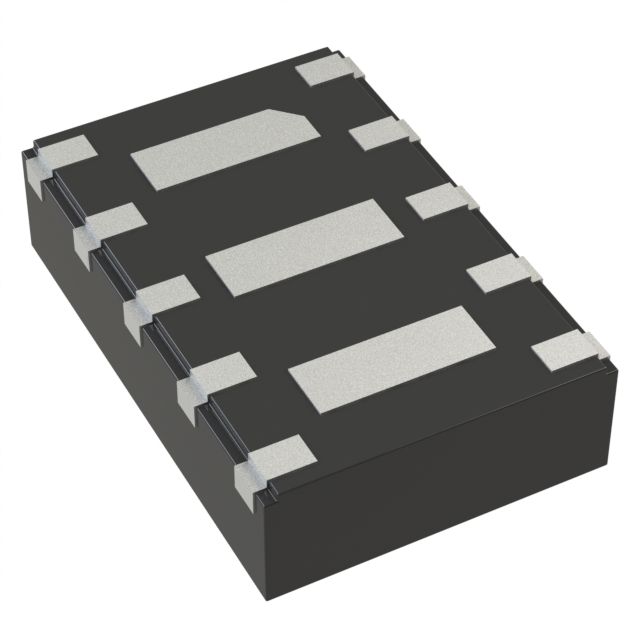

| Package / Case | 10-WDFN |
| Power Line Protection | False |
| Qualification | AEC-Q101 |
| Supplier Device Package | 10-WDFNW (3x2) |
| Type | Zener |
| Unidirectional Channels [custom] | 4 |
| Voltage - Breakdown (Min) [Min] | 3.2 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 15 V |
| Voltage - Reverse Standoff (Typ) [Max] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.58 | |
| 10 | $ 1.00 | |||
| 100 | $ 0.67 | |||
| 500 | $ 0.52 | |||
| 1000 | $ 0.48 | |||
| Digi-Reel® | 1 | $ 1.58 | ||
| 10 | $ 1.00 | |||
| 100 | $ 0.67 | |||
| 500 | $ 0.52 | |||
| 1000 | $ 0.48 | |||
| Tape & Reel (TR) | 3000 | $ 0.42 | ||
| 6000 | $ 0.39 | |||
| 9000 | $ 0.38 | |||
| ON Semiconductor | N/A | 1 | $ 0.40 | |
Description
General part information
SZNSP8814L Series
The SZNSP8814L surge protector is designed specifically to protect 10/100 and GbE Ethernet signals from high levels of surge current. Low clamping voltage under high surge conditions make this device an ideal solution for protecting voltage sensitive lines leading to Ethernet transceiver chips. Low capacitance combined with flow-through style packaging allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance between high-speed differential lines.
