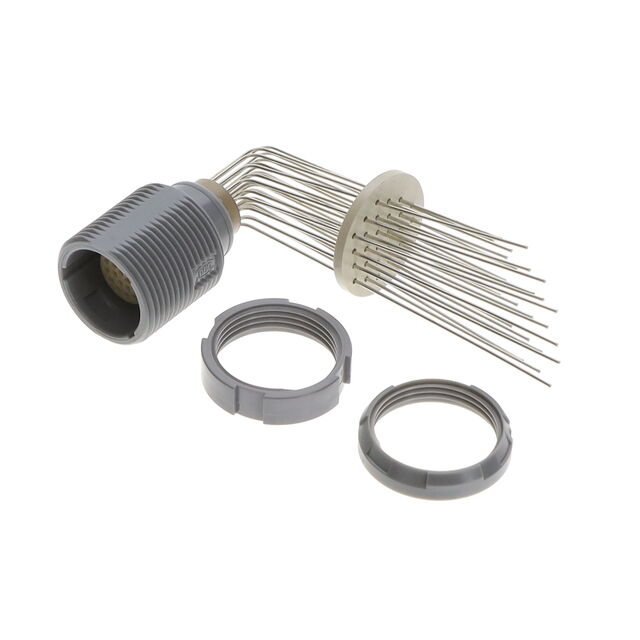

G52MF7-P26QC00-A071

Active

ODU

ODU MEDI-SNAP RT.ANGLE RECEPT, S

Search across all available documentation for this part.

Active

ODU

ODU MEDI-SNAP RT.ANGLE RECEPT, S

Technical Specifications

Parameters and characteristics for this part

Specification	G52MF7-P26QC00-A071

Applications	Testing Equipment, Medical, Industrial, Measurement
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	4 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front or Rear Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	26
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	F
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	2
Shielding	Unshielded
Termination	Solder
Voltage Rating	25 V

Part	Contact Material	Number of Positions	Orientation	Mounting Type	Shell Size - Insert	Ingress Protection	Voltage Rating	Termination	Material Flammability Rating	Insert Material	Applications	Mounting Feature	Contact Finish - Mating	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Primary Material	Color	Current Rating (Amps)	Shell Material	Connector Type
ODU G52MF7-P26QC00-A071	Brass	26	F	Panel Mount Through Hole	2	IP50	25 V	Solder	UL94 V-0	Polyetheretherketone (PEEK)	Industrial Measurement Medical Testing Equipment	Bulkhead - Front or Rear Side Nut	Gold	Unshielded	-50 °C	120 °C	Detent Lock Push-Pull	Plastic	Gray	4 A	Polysulfone (PSU)	Receptacle Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position Circular Connector Receptacle, Female Sockets Solder
