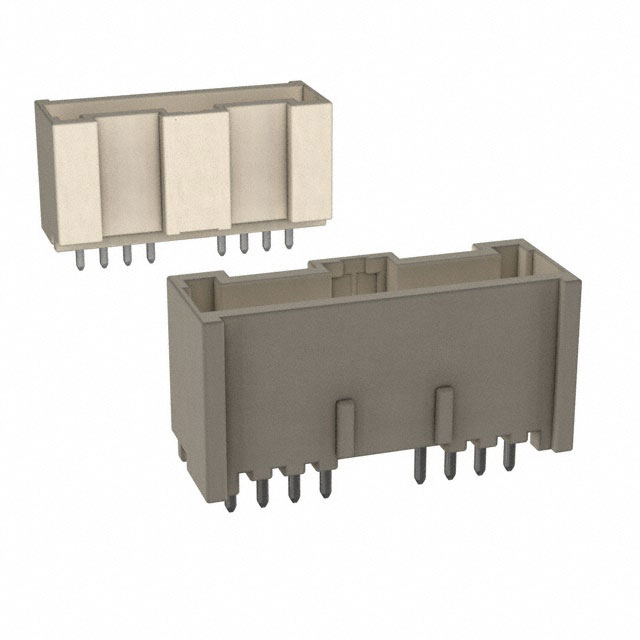

DF1EC-8P-2.5DSA(36)

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 8POS 2.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF1EC-8P-2.5DSA(36)

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 8POS 2.5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF1EC-8P-2.5DSA(36)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Length - Mating	0.177 in
Contact Length - Mating	4.5 mm
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Insulation Color	Natural
Insulation Height	0.425 in
Insulation Height	10.8 mm
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	15.8 mm, 19.8 mm, 14.3 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

DF1EC Series

Part	Contact Type	Mated Stacking Heights	Insulation Color	Number of Positions Loaded	Mounting Type	Number of Positions	Shrouding	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Connector Type	Insulation Material	Termination	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Style	Contact Shape	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Hirose Electric USA, Inc. DF1EC-13P-2.5DSA	Male Pin	14.3 mm 15.8 mm 19.8 mm	Natural	All	Through Hole	13	Shrouded - 4 Wall	UL94 V-0	0.177 in	4.5 mm	3 A	Header	Nylon Polyamide (PA)	Solder	Latch Holder	3.6 mm	0.142 in	1 µm	39.4 µin	1	0.425 in	10.8 mm	2.5 mm	0.098 in	Tin	-35 °C	85 °C	Brass	Board to Cable/Wire	Square
Hirose Electric USA, Inc. DF1EC-6P-2.5DSA(73)
Hirose Electric USA, Inc. DF1EC-13P-2.5DSA(36)	Male Pin	14.3 mm 15.8 mm 19.8 mm	Natural	All	Through Hole	13	Shrouded - 4 Wall	UL94 V-0	0.177 in	4.5 mm	3 A	Header	Nylon Polyamide (PA)	Solder	Latch Holder	3.6 mm	0.142 in	0.203 Ám	8 Áin	1	0.425 in	10.8 mm	2.5 mm	0.098 in		-35 °C	85 °C	Brass	Board to Cable/Wire	Square	Gold
Hirose Electric USA, Inc. DF1EC-14P-2.5DSA(35)	Male Pin	14.3 mm 15.8 mm 19.8 mm	Natural	All	Through Hole	14	Shrouded - 4 Wall	UL94 V-0	0.177 in	4.5 mm	3 A	Header	Nylon Polyamide (PA)	Solder	Latch Holder	3.6 mm	0.142 in	1 µm	39.4 µin	1	0.425 in	10.8 mm	2.5 mm	0.098 in	Tin	-35 °C	85 °C	Brass	Board to Cable/Wire	Square		1 çm	39.4 çin
Hirose Electric USA, Inc. DF1EC-2P-2.5DSA(05)	Male Pin	14.3 mm 15.8 mm 19.8 mm	Natural	All	Through Hole	2	Shrouded - 4 Wall	UL94 V-0	0.177 in	4.5 mm	3 A	Header	Nylon Polyamide (PA)	Solder	Latch Holder	3.6 mm	0.142 in	1 µm	39.4 µin	1	0.425 in	10.8 mm	2.5 mm	0.098 in	Tin	-35 °C	85 °C	Brass	Board to Cable/Wire	Square
Hirose Electric USA, Inc. DF1EC-9P-2.5DSA(05)	Male Pin	14.3 mm 15.8 mm 19.8 mm	Natural	All	Through Hole	9	Shrouded - 4 Wall	UL94 V-0	0.177 in	4.5 mm	3 A	Header	Nylon Polyamide (PA)	Solder	Latch Holder	3.6 mm	0.142 in	1 µm	39.4 µin	1	0.425 in	10.8 mm	2.5 mm	0.098 in	Tin	-35 °C	85 °C	Brass	Board to Cable/Wire	Square
Hirose Electric USA, Inc. DF1EC-8P-2.5DSA(36)	Male Pin	14.3 mm 15.8 mm 19.8 mm	Natural	All	Through Hole	8	Shrouded - 4 Wall	UL94 V-0	0.177 in	4.5 mm	3 A	Header	Nylon Polyamide (PA)	Solder	Latch Holder	3.6 mm	0.142 in	0.203 Ám	8 Áin	1	0.425 in	10.8 mm	2.5 mm	0.098 in		-35 °C	85 °C	Brass	Board to Cable/Wire	Square	Gold
Hirose Electric USA, Inc. DF1EC-3P-2.5DSA(36)	Male Pin	14.3 mm 15.8 mm 19.8 mm	Natural	All	Through Hole		Shrouded - 4 Wall	UL94 V-0	0.177 in	4.5 mm	3 A	Header	Nylon Polyamide (PA)	Solder	Latch Holder	3.6 mm	0.142 in	0.203 Ám	8 Áin	1	0.425 in	10.8 mm	2.5 mm	0.098 in		-35 °C	85 °C	Brass	Board to Cable/Wire	Square	Gold
Hirose Electric USA, Inc. DF1EC-4P-2.5DSA(35)	Male Pin	14.3 mm 15.8 mm 19.8 mm	Natural	All	Through Hole	4	Shrouded - 4 Wall	UL94 V-0	0.177 in	4.5 mm	3 A	Header	Nylon Polyamide (PA)	Solder	Latch Holder	3.6 mm	0.142 in	1 µm	39.4 µin	1	0.425 in	10.8 mm	2.5 mm	0.098 in	Tin	-35 °C	85 °C	Brass	Board to Cable/Wire	Square		1 çm	39.4 çin
Hirose Electric USA, Inc. DF1EC-6P-2.5DSA(35)	Male Pin	14.3 mm 15.8 mm 19.8 mm	Natural	All	Through Hole	6	Shrouded - 4 Wall	UL94 V-0	0.177 in	4.5 mm	3 A	Header	Nylon Polyamide (PA)	Solder	Latch Holder	3.6 mm	0.142 in	1 µm	39.4 µin	1	0.425 in	10.8 mm	2.5 mm	0.098 in	Tin	-35 °C	85 °C	Brass	Board to Cable/Wire	Square		1 çm	39.4 çin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 1.07

Description

General part information

DF1EC Series

Connector Header Through Hole 8 position 0.098" (2.50mm)
