857-064-440-203
ActiveEDAC Inc.

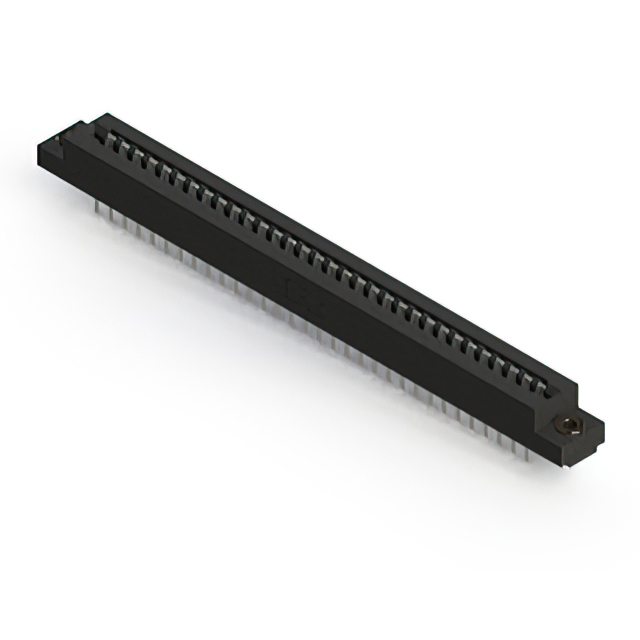

CONN EDGE DUAL FMALE 64POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
857-064-440-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 64POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-064-440-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 64 |
| Number of Positions/Bay/Row [custom] | 32 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
857-064 Series
...
| Part | Read Out | Number of Positions | Termination | Contact Finish | Contact Type | Number of Rows | Features | Contact Material | Gender | Termination Rows | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Card Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | 64 | Solder | Gold | Semi Bellows | 2 | Card Extender | Copper Alloy | Female | 2 | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 32 | Non Specified - Dual Edge | |||
EDAC Inc. | Dual | 64 | Solder | Tin | Semi Bellows | 2 | Copper Alloy | Female | 2 | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 0.156 in | 3.96 mm | 32 | Non Specified - Dual Edge | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | |||
EDAC Inc. | Single | 64 | Solder | Tin | Semi Bellows | 2 | Copper Alloy | Female | 2 | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | 0.156 in | 3.96 mm | 32 | Non Specified - Dual Edge | ||||||
EDAC Inc. | Dual | 64 | Solder Eyelet(s) | Tin | Semi Bellows | 2 | Copper Alloy | Female | 2 | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 0.156 in | 3.96 mm | 32 | Non Specified - Dual Edge | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | |||
EDAC Inc. | Single | 64 | Solder | Gold | Semi Bellows | 2 | Copper Alloy | Female | 2 | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 32 | Non Specified - Dual Edge | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | |
EDAC Inc. | Dual | 64 | Solder | Gold | Semi Bellows | 2 | Card Extender | Copper Alloy | Female | 2 | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 32 | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | ||
EDAC Inc. | Dual | 64 | Wire Wrap | Gold | Semi Bellows | 2 | Copper Alloy | Female | 2 | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 32 | Non Specified - Dual Edge | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | |
EDAC Inc. | Dual | 64 | Solder | Tin | Semi Bellows | 2 | Card Extender | Copper Alloy | Female | 2 | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | 0.156 in | 3.96 mm | 32 | Non Specified - Dual Edge | |||||
EDAC Inc. | Dual | 64 | Solder | Tin | Semi Bellows | 2 | Copper Alloy | Female | 2 | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 0.156 in | 3.96 mm | 32 | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | Dual | 64 | Wire Wrap | Tin | Semi Bellows | 2 | Copper Alloy | Female | 2 | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 0.156 in | 3.96 mm | 32 | Non Specified - Dual Edge | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 115.56 | |
Description
General part information
857-064 Series
64 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
