HBHR-A1-30-VG-HT

Active

Adam Tech

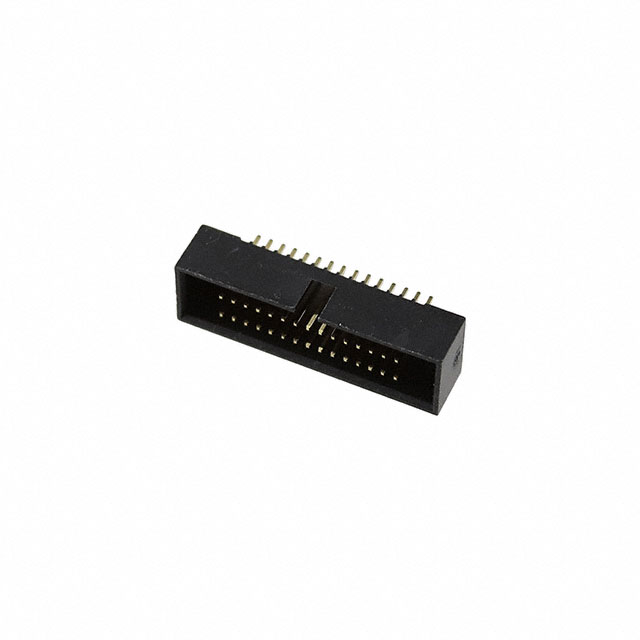

CONN HEADER VERT 30POS 1.27MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER VERT 30POS 1.27MM

Technical Specifications

Parameters and characteristics for this part

Specification	HBHR-A1-30-VG-HT

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Polarizing Key
Insulation Color	Black
Insulation Height [custom]	5.51 mm
Insulation Height [custom]	0.217 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Features	Voltage Rating	Number of Positions	Contact Finish - Post	Insulation Color	Pitch - Mating	Pitch - Mating	Connector Type	Termination	Number of Positions Loaded	Fastening Type	Contact Shape	Contact Finish - Mating	Contact Length - Post	Contact Length - Post [x]	Insulation Material	Style	Mounting Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Shrouding	Contact Finish Thickness - Mating	Number of Rows	Insulation Height [custom]	Insulation Height [custom]	Material Flammability Rating
Adam Tech HBHR-A1-30-VG-HT	Male Pin	2.54 mm	0.1 in	Polarizing Key	250 VAC	30	Gold	Black	0.05 in	1.27 mm	Header	Solder	All	Push-Pull	Square	Gold	3.2 mm	0.126 in	Nylon 6T Polyamide (PA6T)	Board to Cable/Wire	Through Hole	Brass	-40 °C	105 ░C	Flash	Shrouded - 4 Wall	Flash	2	5.51 mm	0.217 in	UL94 V-0
