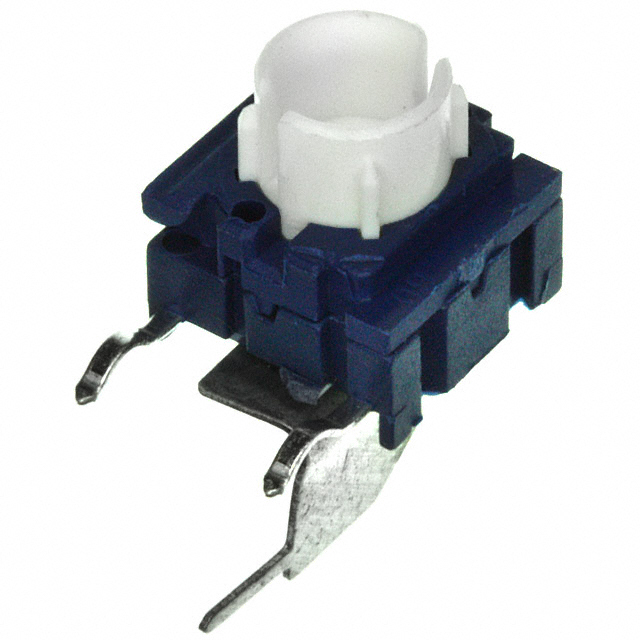

3FTL6RAS

Obsolete

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3FTL6RAS

Obsolete

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3FTL6RAS

Actuator Material	Polybutylene Terephthalate (PBT)
Actuator Orientation	Side Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Sealed - Flux Protection
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Force	300 gf
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Outline [x]	10.1 mm
Outline [y]	10.1 mm
Switch Function	Off-Mom
Switch Travel	1 mm
Termination Style	PC Pin

3FTL6 Series

Part	Features	Actuator Height off PCB, Vertical	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Ingress Protection	Mechanical Life	Termination Style	Circuit	Illumination	Illumination Voltage (Nominal)	Operating Force	Contact Rating @ Voltage	Actuator Type	Illumination Type, Color	Switch Function	Mounting Type	Switch Travel	Outline [x]	Outline [y]	Actuator Orientation
MEC Switches 3FTL645	Sealed - Flux Protection	10.4 mm	-40 °C	115 °C	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	10000000 Cycles	PC Pin	SPST-NO	Illuminated	2.3 VDC	300 gf	0.05 A 24 VDC	Plunger for Cap	LED Yellow	Off-Mom	Through Hole	1 mm	10.1 mm	10.1 mm	Top Actuated
MEC Switches 3FTL6RAS	Sealed - Flux Protection		-40 °C	115 °C	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	10000000 Cycles	PC Pin	SPST-NO	Non-Illuminated		300 gf	0.05 A 24 VDC	Plunger for Cap		Off-Mom	Through Hole Right Angle	1 mm	10.1 mm	10.1 mm	Side Actuated
MEC Switches 3FTL620	Sealed - Flux Protection	10.4 mm	-40 °C	115 °C	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	10000000 Cycles	PC Pin	SPST-NO	Illuminated	2.1 VDC	300 gf	0.05 A 24 VDC	Plunger for Cap	Green LED	Off-Mom	Through Hole	1 mm	10.1 mm	10.1 mm	Top Actuated
MEC Switches 3FTL68020	Sealed - Flux Protection	10.4 mm	-40 °C	115 °C	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	10000000 Cycles	PC Pin	SPST-NO	Illuminated	2 VDC 2.1 VDC	300 gf	0.05 A 24 VDC	Plunger for Cap	Green/Red LED	Off-Mom	Through Hole	1 mm	10.1 mm	10.1 mm	Top Actuated
MEC Switches 3FTL624	Sealed - Flux Protection	10.4 mm	-40 °C	115 °C	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	10000000 Cycles	PC Pin	SPST-NO	Illuminated	2 VDC	300 gf	0.05 A 24 VDC	Plunger for Cap	Green LED	Off-Mom	Through Hole	1 mm	10.1 mm	10.1 mm	Top Actuated
MEC Switches 3FTL689	Sealed - Flux Protection	10.4 mm	-40 °C	115 °C	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	10000000 Cycles	PC Pin	SPST-NO	Illuminated	2 VDC	300 gf	0.05 A 24 VDC	Plunger for Cap	LED Red	Off-Mom	Through Hole	1 mm	10.1 mm	10.1 mm	Top Actuated
MEC Switches 3FTL600	Sealed - Flux Protection	10.4 mm	-40 °C	115 °C	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	10000000 Cycles	PC Pin	SPST-NO	Illuminated	2.1 VDC	300 gf	0.05 A 24 VDC	Plunger for Cap	Blue LED	Off-Mom	Through Hole	1 mm	10.1 mm	10.1 mm	Top Actuated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

3FTL6 Series

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
