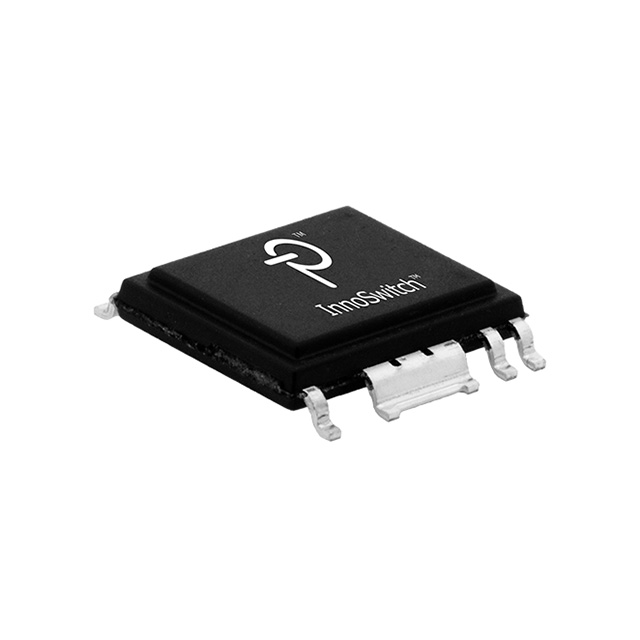

INN2024K

Unknown

Power Integrations

IC OFFLINE SW MULT TOP 16ESOP

Search across all available documentation for this part.

Unknown

Power Integrations

IC OFFLINE SW MULT TOP 16ESOP

Technical Specifications

Parameters and characteristics for this part

Specification	INN2024K

Duty Cycle	60 %
Fault Protection	Over Temperature, Current Limiting, Over Voltage
Frequency - Switching	100 kHz
Internal Switch(s)	True
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Isolation	Isolated
Package / Case [custom]	16-PowerSOIC
Package / Case [custom]	8.89 mm, 0.35 in
Package / Case [custom]	15
Power (Watts)	15 W
Supplier Device Package	eSOP-R16B
Topology	Flyback, Secondary Side SR
Voltage - Breakdown	650 V

Part	Power (Watts)	Mounting Type	Package / Case [custom]	Package / Case [custom]	Package / Case [custom]	Duty Cycle	Fault Protection	Operating Temperature [Max]	Operating Temperature [Min]	Internal Switch(s)	Supplier Device Package	Topology	Frequency - Switching	Voltage - Breakdown	Output Isolation
Power Integrations INN2024K	15 W	Surface Mount	16-PowerSOIC	0.35 in 8.89 mm	15	60 %	Current Limiting Over Temperature Over Voltage	85 °C	-40 °C		eSOP-R16B	Flyback Secondary Side SR	100 kHz	650 V	Isolated
Power Integrations INN2024K-TL	15 W	Surface Mount	16-PowerSOIC	0.35 in 8.89 mm	15	60 %	Current Limiting Over Temperature Over Voltage	85 °C	-40 °C		eSOP-R16B	Flyback Secondary Side SR	100 kHz	650 V	Isolated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Converter Offline Flyback, Secondary Side SR Topology 100kHz eSOP-R16B
