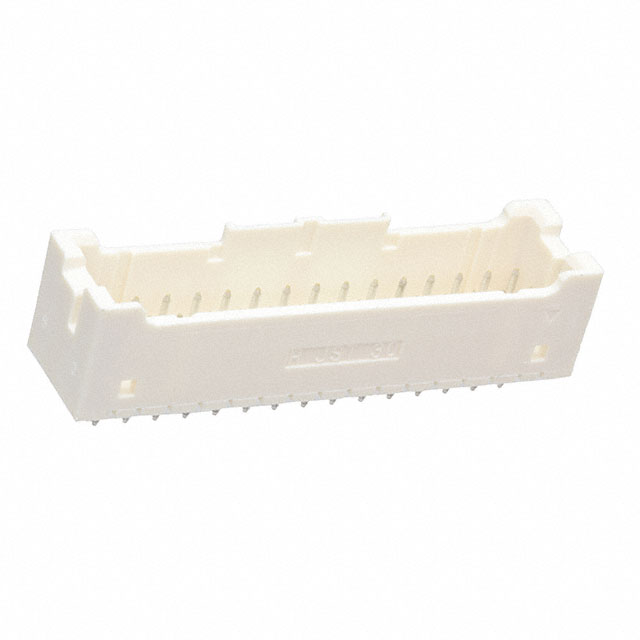

B30B-XADSS-N

Active

JST Sales America Inc.

CONN HEADER VERT 30POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 30POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	B30B-XADSS-N

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	10.11 mm
Insulation Height	0.398 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	13.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Row Spacing - Mating	0.098 in
Row Spacing - Mating	2.5 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Connector Type	Contact Length - Post	Contact Length - Post	Insulation Material	Pitch - Mating	Pitch - Mating	Mounting Type	Style	Fastening Type	Number of Rows	Contact Shape	Current Rating (Amps)	Number of Positions	Insulation Color	Contact Type	Shrouding	Mated Stacking Heights	Number of Positions Loaded	Contact Material	Voltage Rating	Insulation Height	Insulation Height	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Termination	Row Spacing - Mating	Row Spacing - Mating	Features
JST Sales America Inc. B30B-XADSS-N	Header	3.5 mm	0.138 in	Polyamide (PA66) Nylon 6/6 Glass Filled	2.5 mm	0.098 in	Through Hole	Board to Cable/Wire	Locking Ramp	2	Circular	3 A	30	Natural	Male Pin	Shrouded - 4 Wall	13.8 mm	All	Copper Alloy	250 VDC	10.11 mm	0.398 in	UL94 V-0	-25 °C	85 °C	Tin	Solder	0.098 in	2.5 mm
JST Sales America Inc. B30B-XADSS-N-A	Header	3.5 mm	0.138 in	Polyamide (PA66) Nylon 6/6 Glass Filled	2.5 mm	0.098 in	Through Hole	Board to Cable/Wire	Locking Ramp	2	Circular	3 A	30	Natural	Male Pin	Shrouded - 4 Wall		All	Copper Alloy	250 VDC	10.11 mm	0.398 in	UL94 V-0	-25 °C	85 °C	Tin	Solder	0.098 in	2.5 mm	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 30 position 0.098" (2.50mm)
