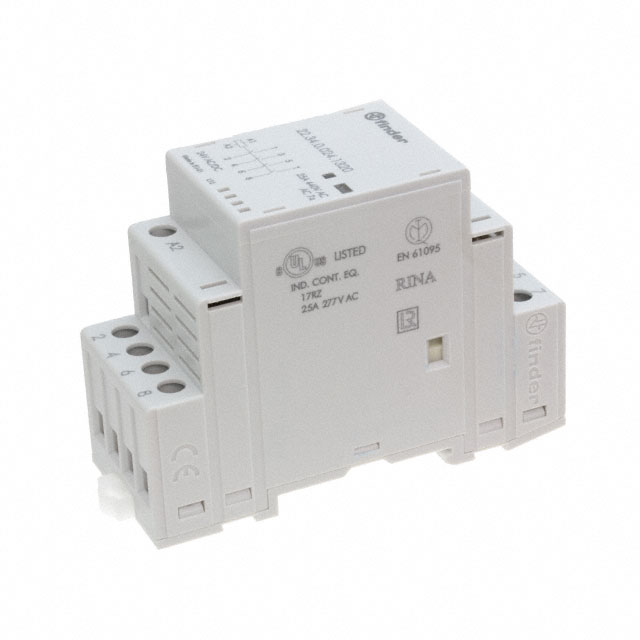

22.34.0.230.4620

Active

Finder Relays, Inc.

RELAY 2NO + 2NC 25A 230VACDC

Deep-Dive with AI

Search across all available documentation for this part.

22.34.0.230.4620

Active

Finder Relays, Inc.

RELAY 2NO + 2NC 25A 230VACDC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	22.34.0.230.4620

Coil Current	8.7 mA
Coil Power	2 W
Coil Resistance	26.44 kOhms
Coil Voltage	230 VAC
Contact Form	4PST-2NO/2NC (2 Form A, 2 Form B)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	25 A
Features	Mechanical Indicator, Lighted Indicator
Mounting Type	DIN Rail
Must Operate Voltage	184 VAC
Must Release Voltage	23 VAC
Operate Time	18 ms
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Switching Voltage	250 VAC
Termination Style	Screw Terminal

22.34 Series

Part	Contact Rating (Current)	Termination Style	Coil Power	Operate Time	Features	Coil Resistance	Must Operate Voltage	Contact Material	Must Release Voltage	Coil Current	Contact Form	Coil Voltage	Mounting Type	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]
Finder Relays, Inc. 22.34.0.230.4620	25 A	Screw Terminal	2 W	18 ms	Lighted Indicator Mechanical Indicator	26.44 kOhms	184 VAC	Silver Tin Oxide (AgSnO)	23 VAC	8.7 mA	4PST-2NO/2NC (2 Form A 2 Form B)	230 VAC	DIN Rail	250 VAC	50 °C	-20 C
Finder Relays, Inc. 22.34.0.024.4620	25 A	Screw Terminal	2 W	18 ms	Lighted Indicator Mechanical Indicator	289 Ohms	19.2 VAC	Silver Tin Oxide (AgSnO)	2.4 VAC/DC	83 mA	4PST-2NO/2NC (2 Form A 2 Form B)	24 VAC	DIN Rail	250 VAC	50 °C	-20 C
Finder Relays, Inc. 22.34.0.120.4340	25 A	Screw Terminal	2 W	18 ms	AUTO-ON-OFF Selector Lighted Indicator Mechanical Indicator	7.27 kOhms	88 VAC/DC	Silver Tin Oxide (AgSnO)	12 VAC	16.5 mA	4PST-NO (4 Form A)	120 VAC 120 VDC	DIN Rail	250 VAC	50 °C	-20 C
Finder Relays, Inc. 22.34.0.120.4640	25 A	Screw Terminal	2 W	18 ms	AUTO-ON-OFF Selector Lighted Indicator Mechanical Indicator	7.27 kOhms	88 VAC/DC	Silver Tin Oxide (AgSnO)	12 VAC	16.5 mA	4PST-2NO/2NC (2 Form A 2 Form B)	120 VAC 120 VDC	DIN Rail	250 VAC	50 °C	-20 C
Finder Relays, Inc. 22.34.0.120.4620	25 A	Screw Terminal	2 W	18 ms	Lighted Indicator Mechanical Indicator	7.27 kOhms	88 VAC/DC	Silver Tin Oxide (AgSnO)	12 VAC	16.5 mA	4PST-2NO/2NC (2 Form A 2 Form B)	120 VAC 120 VDC	DIN Rail	250 VAC	50 °C	-20 C
Finder Relays, Inc. 22.34.0.024.1720	25 A	Screw Terminal	2 W	18 ms	Lighted Indicator Mechanical Indicator	289 Ohms	19.2 VAC	Silver Nickel (AgNi)	2.4 VAC/DC	83 mA	4PST-3NO/1NC (3 Form A 1 Form B)	24 VAC	DIN Rail	250 VAC	50 °C	-20 C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51.31

Description

General part information

22.34 Series

RELAY 2NO + 2NC 25A 230VACDC

Documents

Technical documentation and resources

No documents available
