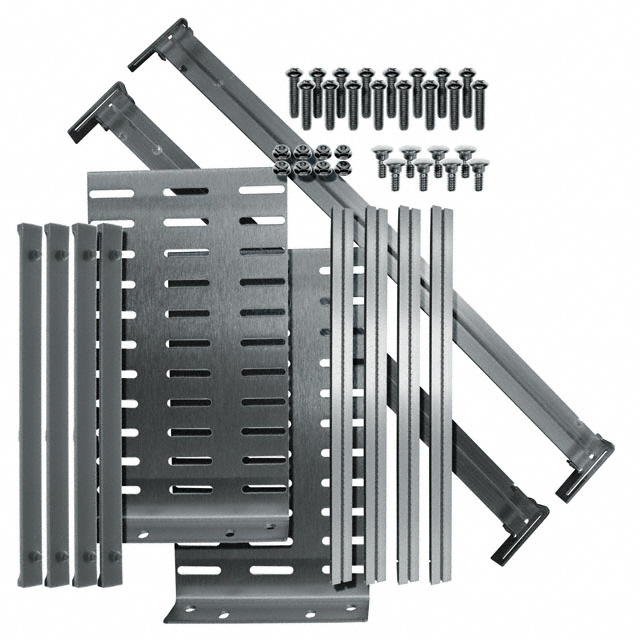

CCK13S/90

Active

Vector Electronics

19" SUBRACK, CARD CAGE KIT, VECTORPAK&TRADE;, 3U, 229 MM, 133.4 MM, 483 MM, 9 "

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CCK13S/90

Active

Vector Electronics

19" SUBRACK, CARD CAGE KIT, VECTORPAK&TRADE;, 3U, 229 MM, 133.4 MM, 483 MM, 9 "

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CCK13S/90

Card Size Range	63.5 mm, 165.1 mm
Card Size Range [Max]	114.3 mm
Card Size Range [Max] [z]	4.5 in
Card Size Range [x]	6.5 in
Card Size Range [z]	2.5 in
Guide Method	Card Guide
Height [z]	133.35 mm
Height [z]	5.25 in
Material	Aluminum
Size / Dimension [x]	228.6 mm
Size / Dimension [x]	9 in
Size / Dimension [y]	482.6 mm
Size / Dimension [y]	19 in
Type	Subrack Kit

CCK13S Series

Part	Card Size Range [z]	Card Size Range	Card Size Range [Max]	Card Size Range [x]	Card Size Range [Max] [z]	Height [z]	Height [z]	Type	Material	Guide Method	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Vector Electronics CCK13S/90	2.5 in	63.5 mm 165.1 mm	114.3 mm	6.5 in	4.5 in	133.35 mm	5.25 in	Subrack Kit	Aluminum	Card Guide	228.6 mm	9 in	482.6 mm	19 in
Vector Electronics CCK13S-HT/90	2.5 in	63.5 mm 165.1 mm	114.3 mm	6.5 in	4.5 in	133.35 mm	5.25 in	Subrack Kit	Aluminum	Card Guide	228.6 mm		10.25 "		228.6 mm	260.35 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 172.52
		10	$ 166.36
Newark	Each	1	$ 226.94
		10	$ 200.10
		25	$ 176.92
		100	$ 165.94
		250	$ 156.18
		500	$ 150.08

Description

General part information

CCK13S Series

The CCK13S/90 is a 3U 19-inch VECTORPAK Subrack Kit designed in accordance with EIA standard RS-310. All subracks sizes are compatible with Vector prototyping boards and will accommodate other sizes as well.
