031-71046
ActiveAmphenol RF

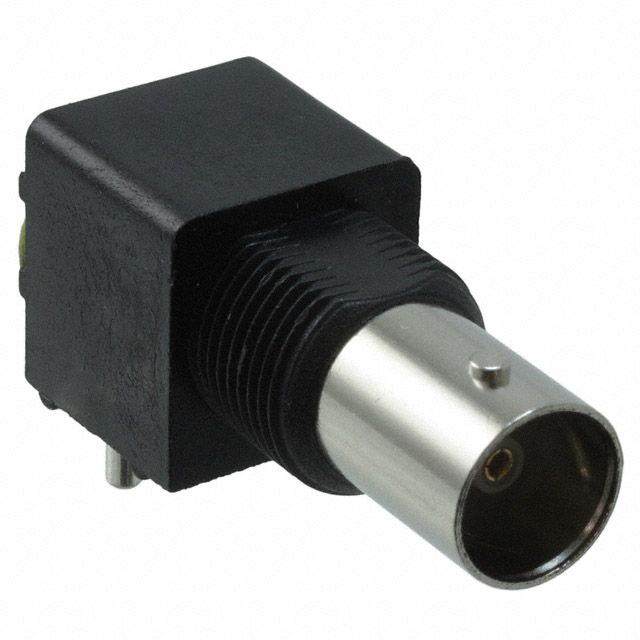

CONN BNC 0HZ TO 1GHZ 75OHM SOLDER RA THRU-HOLE RCP GOLD OVER NICKEL TRAY
Deep-Dive with AI
Search across all available documentation for this part.
031-71046
ActiveAmphenol RF
CONN BNC 0HZ TO 1GHZ 75OHM SOLDER RA THRU-HOLE RCP GOLD OVER NICKEL TRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 031-71046 |
|---|---|
| Body Finish | Nickel |
| Body Material | Zinc Die Cast |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polypropylene (PP) |
| Fastening Type | Bayonet Lock |
| Features | Isolated, Board Guide |
| Frequency - Max [Max] | 1 GHz |
| Housing Color | Black, Silver |
| Impedance | 75 Ohms |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
031-71 Series
| Part | Mounting Type | Mating Cycles | Fastening Type | Voltage Rating | Frequency - Max [Max] | Body Material | Connector Type | Center Contact Material | Dielectric Material | Impedance | Features | Housing Color | Connector Style | Mounting Feature | Contact Termination | Shield Termination | Insertion Loss | Number of Ports | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Includes | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Panel Mount Right Angle Through Hole | 500 | Bayonet Lock | 500 V | 1 GHz | Zinc Die Cast | Female Socket Jack | Phosphor Bronze | Polypropylene (PP) | 75 Ohms | Board Guide Isolated | Silver White | BNC | Bulkhead - Front Side Nut | Solder | Solder | 0.2 dB | 1 | Gold | 85 °C | -55 °C | Nickel | ||
Amphenol RF | Free Hanging (In-Line) | 500 | Bayonet Lock | 500 V | 4 GHz | Brass | Male Pin Plug | Brass | Polytetrafluoroethylene (PTFE) | 75 Ohms | Silver | BNC | Crimp Solder | Crimp | 0.2 dB | 1 | Gold | 165 °C | -65 ░C | Nickel | 1 Connector 1 Contact 1 Ferrule | 143 212 54 6A 89248 9290 Belden 1152A RG-6 | ||
Amphenol RF | Panel Mount Through Hole | 500 | Bayonet Lock | 500 V | 1 GHz | Zinc Die Cast | Female Socket Jack | Phosphor Bronze | Polypropylene (PP) | 75 Ohms | Silver | BNC | Bulkhead - Front Side Nut | Solder | Solder | 0.2 dB | 1 | Gold | 85 °C | -55 °C | Nickel | |||
Amphenol RF | Panel Mount Right Angle Through Hole | 500 | Bayonet Lock | 500 V | 1 GHz | Zinc Die Cast | Female Socket Jack | Phosphor Bronze | Polypropylene (PP) | 75 Ohms | Board Guide Isolated | Black Silver | BNC | Bulkhead - Front Side Nut | Solder | Solder | 0.2 dB | 1 | Gold | 85 °C | -55 °C | Nickel | ||
Amphenol RF | Free Hanging (In-Line) | 500 | Bayonet Lock | 500 V | Brass | Female Socket Jack | Phosphor Bronze | Polyoxymethylene (POM) Acetal | 75 Ohms | Silver | BNC | Solder | Crimp | 0.2 dB | 1 | Gold | 80 C | -40 °C | Nickel | 1 Connector 1 Contact 1 Ferrule 1 Sleeve | 179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179 | |||
Amphenol RF | Panel Mount Through Hole | 500 | Bayonet Lock | 500 V | 1 GHz | Zinc Die Cast | Female Socket Jack | Phosphor Bronze | Polypropylene (PP) | 75 Ohms | Board Guide Isolated | Black Silver | BNC | Bulkhead - Front Side Nut | Solder | Solder | 0.2 dB | 1 | Gold | 85 °C | -55 °C | Nickel | ||
Amphenol RF | Free Hanging (In-Line) | 500 | Bayonet Lock | 500 V | 2 GHz | Brass | Male Pin Plug | Brass | Polyoxymethylene (POM) Acetal | 75 Ohms | Silver | BNC | Crimp | Crimp | 0.2 dB | 1 | Gold | 85 °C | -40 °C | Nickel | 1 Connector 1 Contact 1 Ferrule | 1694A 9248 Belden 1694 RG-6 | ||
Amphenol RF | Panel Mount Right Angle Through Hole | 500 | Bayonet Lock | 500 V | 1 GHz | Zinc Die Cast | Female Socket Jack | Phosphor Bronze | Polypropylene (PP) | 75 Ohms | Board Lock Isolated | Silver White | BNC | Bulkhead - Front Side Nut | Solder | Solder | 0.2 dB | 1 | Gold | 85 °C | -55 °C | Nickel | ||
Amphenol RF | Free Hanging (In-Line) | 500 | Bayonet Lock | 500 V | 4 GHz | Brass | Female Socket Jack | Phosphor Bronze | Polyoxymethylene (POM) Acetal | 75 Ohms | Silver | BNC | Crimp | Crimp | 0.2 dB | 1 | Gold | 165 °C | -65 ░C | Nickel | 1 Connector 1 Contact 1 Ferrule | 140 210 59B 62 8263 8279 9209 Belden 8241 RG-59 | ||
Amphenol RF | Free Hanging (In-Line) Right Angle | 500 | Bayonet Lock | 500 V | 2 GHz | Brass | Male Pin Plug | Brass | Polyoxymethylene (POM) Acetal | 75 Ohms | Silver | BNC | Crimp | Crimp | 0.2 dB | 1 | Gold | 155 °C | -40 °C | Nickel | 1 Connector 1 Contact 1 Ferrule | 82108 9104 Belden 1506 RG-59 Plenum |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.11 | |
| 10 | $ 8.20 | |||
| 25 | $ 7.72 | |||
| 40 | $ 7.52 | |||
| 100 | $ 7.32 | |||
| 300 | $ 6.53 | |||
| 500 | $ 6.14 | |||
| 1000 | $ 5.42 | |||
Description
General part information
031-71 Series
BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
