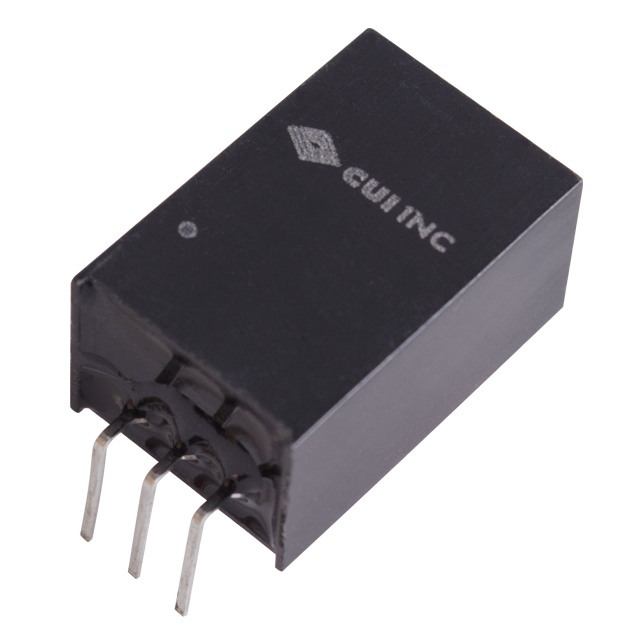

V7805-2000R

Obsolete

CUI Inc.

DC DC CONVERTER 5V 10W

Deep-Dive with AI

Search across all available documentation for this part.

V7805-2000R

Obsolete

CUI Inc.

DC DC CONVERTER 5V 10W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V7805-2000R

Applications	ITE (Commercial)
Approval Agency	CB Scheme, IEC, EN
Current - Output (Max) [Max]	2 A
Efficiency	91 %
Features	OTP, SCP
Mounting Type	Through Hole, Right Angle
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SIP Module
Power (Watts)	10 W
Size / Dimension [x]	17.5 mm
Size / Dimension [x]	0.69 in
Size / Dimension [y]	0.45 in
Size / Dimension [y]	11.5 mm
Size / Dimension [z]	0.35 "
Size / Dimension [z]	9 mm
Standard Number	55024, 60950-1, 55032 Class A
Type	Linear Regulator Replacement
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	7 V
Voltage - Output 1	5 V

V7805 Series

Part	Package / Case	Type	Voltage - Input (Max) [Max]	Approval Agency	Power (Watts)	Current - Output (Max) [Max]	Features	Voltage - Output 1	Number of Outputs	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Applications	Mounting Type	Standard Number	Control Features
CUI Inc. V7805-2000R	3-SIP Module	Linear Regulator Replacement	18 V	CB Scheme EN IEC	10 W	2 A	OTP SCP	5 V	1	7 V	85 °C	-40 °C	91 %	0.45 in	0.35 "	17.5 mm	0.69 in	11.5 mm	9 mm	ITE (Commercial)	Through Hole Right Angle	55024 55032 Class A 60950-1
CUI Inc. V7805-500	3-SIP Module	Linear Regulator Replacement	32 V			500 mA	OTP SCP	5 V	1	6.5 V	85 °C	-40 °C	93 %	0.3 "	0.4 "	11.4 mm	0.45 in	7.6 mm	10.2 mm	ITE (Commercial)	Through Hole
CUI Inc. V7805W-500R	3-SIP Module	Linear Regulator Replacement	72 V			500 mA	OTP SCP	5 V	1	9 V	85 °C	-40 °C	87 %	0.45 in	0.35 "	17.5 mm	0.69 in	11.5 mm	9 mm	ITE (Commercial)	Through Hole Right Angle
CUI Inc. V7805-1500R	3-SIP Module	Linear Regulator Replacement	18 V		7.5 W	1.5 A	OTP SCP	5 V	1	6.5 V	85 °C	-40 °C	93 %	0.45 in	0.35 "	17.5 mm	0.69 in	11.5 mm	9 mm	ITE (Commercial)	Through Hole Right Angle
CUI Inc. V7805-500-SMT-TR	10-SMD Module 6 Leads	Linear Regulator Replacement	28 V			500 mA	OTP Remote On/Off SCP	5 V	1	6 V	85 °C	-40 °C	94 %	0.33 in	0.29 "	15.2 mm	0.6 in	8.3 mm	7.3 mm	ITE (Commercial)	Surface Mount		Active High Enable
CUI Inc. V7805-1000-SMT-TR	10-SMD Module 6 Leads	Linear Regulator Replacement	18 V		5 W	1 A	OTP Remote On/Off SCP	5 V	1	7 V	85 °C	-40 °C	90 %	0.33 in	0.29 "	15.2 mm	0.6 in	8.5 mm	7.3 mm	ITE (Commercial)	Surface Mount		Active High Enable
CUI Inc. V7805-1000	3-SIP Module	Linear Regulator Replacement	32 V		5 W	1 A	OTP SCP	5 V	1	6.5 V	85 °C	-40 °C	93 %	0.35 "	0.69 "	11.5 mm	0.45 in	9 mm	17.5 mm	ITE (Commercial)	Through Hole
CUI Inc. V7805-2000	3-SIP Module	Linear Regulator Replacement	18 V	CB Scheme EN IEC	10 W	2 A	OTP SCP	5 V	1	7 V	85 °C	-40 °C	91 %	0.35 "	0.69 "	11.5 mm	0.45 in	9 mm	17.5 mm	ITE (Commercial)	Through Hole	55024 55032 Class A 60950-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

V7805 Series

Linear Regulator Replacement DC DC Converter 1 Output 5V 2A 7V - 18V Input

Documents

Technical documentation and resources

No documents available
