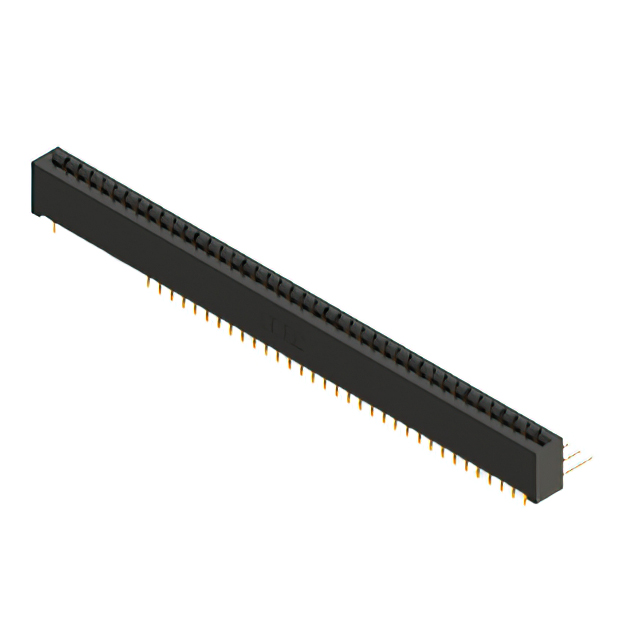

887-082-559-201

Active

EDAC Inc.

CARD EDGE CONNECTOR, 82 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

887-082-559-201

Active

EDAC Inc.

CARD EDGE CONNECTOR, 82 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	887-082-559-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	82
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

887-082 Series

...

Part	Read Out	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Positions	Contact Finish	Card Type	Contact Finish Thickness	Contact Finish Thickness	Color	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination	Pitch [x]	Pitch [x]	Contact Material	Contact Type	Number of Rows	Termination Rows	Material - Insulation	Mounting Type	Gender	Features	Flange Feature	Flange Feature
EDAC Inc. 887-082-556-803	Dual	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	82	Gold	Non Specified - Dual Edge	10 Áin	0.25 Ám	Black	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	0.156 in	3.96 mm	Copper Alloy	Cantilever	2	2	Polyphenylene Sulfide (PPS)	Board Edge Straddle Mount	Female	Card Extender
EDAC Inc. 887-082-544-201	Dual				82	Gold	Non Specified - Dual Edge	10 Áin	0.25 Ám	Black	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	0.156 in	3.96 mm	Copper Alloy	Cantilever	2	2	Polyphenylene Sulfide (PPS)	Through Hole	Female
EDAC Inc. 887-082-560-807	Dual		M3 Threaded Insert Top Mount Opening		82	Gold	Non Specified - Dual Edge	10 Áin	0.25 Ám	Black	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	0.156 in	3.96 mm	Copper Alloy	Cantilever	2	2	Polyphenylene Sulfide (PPS)	Board Edge Straddle Mount	Female	Card Extender
EDAC Inc. 887-082-542-812	Dual		Side Mount Opening Unthreaded		82	Gold	Non Specified - Dual Edge	10 Áin	0.25 Ám	Black	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	0.156 in	3.96 mm	Copper Alloy	Cantilever	2	2	Polyphenylene Sulfide (PPS)	Through Hole	Female		3.25 mm	0.128 in
EDAC Inc. 887-082-540-802	Dual				82	Gold	Non Specified - Dual Edge	10 Áin	0.25 Ám	Black	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	0.156 in	3.96 mm	Copper Alloy	Cantilever	2	2	Polyphenylene Sulfide (PPS)	Through Hole	Female		3.25 mm	0.128 in
EDAC Inc. 887-082-560-204	Dual	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	82	Gold	Non Specified - Dual Edge	10 Áin	0.25 Ám	Black	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	0.156 in	3.96 mm	Copper Alloy	Cantilever	2	2	Polyphenylene Sulfide (PPS)	Board Edge Straddle Mount	Female	Card Extender
EDAC Inc. 887-082-541-803	Dual	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	82	Gold	Non Specified - Dual Edge	10 Áin	0.25 Ám	Black	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	0.156 in	3.96 mm	Copper Alloy	Cantilever	2	2	Polyphenylene Sulfide (PPS)	Through Hole	Female
EDAC Inc. 887-082-559-803	Dual	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	82	Gold	Non Specified - Dual Edge	10 Áin	0.25 Ám	Black	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	0.156 in	3.96 mm	Copper Alloy	Cantilever	2	2	Polyphenylene Sulfide (PPS)	Through Hole Right Angle	Female
EDAC Inc. 887-082-559-201	Dual				82	Gold	Non Specified - Dual Edge	10 Áin	0.25 Ám	Black	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	0.156 in	3.96 mm	Copper Alloy	Cantilever	2	2	Polyphenylene Sulfide (PPS)	Through Hole Right Angle	Female
EDAC Inc. 887-082-500-803	Dual	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	82	Gold	Non Specified - Dual Edge	10 Áin	0.25 Ám	Black	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	0.156 in	3.96 mm	Copper Alloy	Cantilever	2	2	Polyphenylene Sulfide (PPS)	Through Hole	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 103.17

Description

General part information

887-082 Series

82 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
