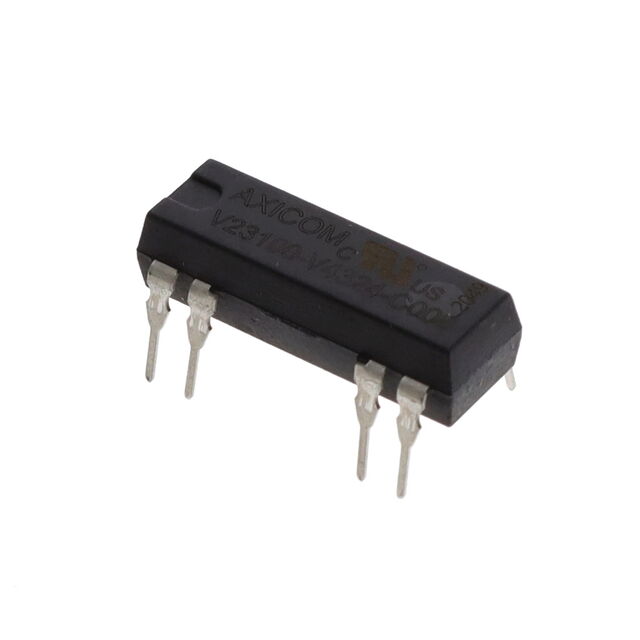

V23100V4324C000

Active

TE Connectivity Potter & Brumfield Relays

RELAY REED SPDT 250MA 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

V23100V4324C000

Active

TE Connectivity Potter & Brumfield Relays

RELAY REED SPDT 250MA 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V23100V4324C000

Coil Current	12 mA
Coil Resistance	2 kOhms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Ruthenium (Ru)
Contact Rating (Current)	250 mA
Mounting Type	Through Hole
Must Operate Voltage	16.8 VDC
Must Release Voltage	3.6 VDC
Operate Time	1.1 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Release Time	1.6 ms
Switching Voltage [Max]	175 VDC
Termination Style	PC Pin

V23100 Series

Part	Switching Voltage	Termination Style	Coil Resistance	Features	Contact Rating (Current)	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Must Operate Voltage	Release Time	Coil Voltage	Must Release Voltage	Operate Time	Coil Type	Contact Form	Coil Current	Switching Voltage [Max]
TE Connectivity Potter & Brumfield Relays V23100V4315B010	200 VDC 200 VAC	PC Pin	2 kOhms	Diode	0.5 A	Ruthenium (Ru)	85 °C	-40 °C	Through Hole	10.5 VDC	0.15 ms	15 VDC	2.25 VDC	750 µs	Non Latching	DPST-NO (2 Form A)	7.5 mA
TE Connectivity Potter & Brumfield Relays V23100V4324C000		PC Pin	2 kOhms		250 mA	Ruthenium (Ru)	85 °C	-40 °C	Through Hole	16.8 VDC	1.6 ms	24 VDC	3.6 VDC	1.1 ms	Non Latching	SPDT (1 Form C)	12 mA	175 VDC
TE Connectivity Potter & Brumfield Relays V23100V6002A101	24 VDC	PC Pin			750 mA	Rhodium (Rh) Ruthenium (Ru)			Through Hole			12 VDC			Non Latching	SPST-NO (1 Form A)	10.9 mA
TE Connectivity Potter & Brumfield Relays V23100V4012A010	200 VDC 200 VAC	PC Pin	1 kOhms	Diode	0.5 A	Ruthenium (Ru)	85 °C	-40 °C	Through Hole	8.4 VDC	0.15 ms	12 VDC	1.8 VDC	750 µs	Non Latching	SPST-NO (1 Form A)	12 mA
TE Connectivity Potter & Brumfield Relays V23100V6003A101	24 VDC	PC Pin	3.86 kOhms		750 mA	Rhodium (Rh) Ruthenium (Ru)			Through Hole			24 VDC			Non Latching	SPST-NO (1 Form A)	6.2 mA
TE Connectivity Potter & Brumfield Relays V23100V4324C010		PC Pin	2 kOhms	Diode	250 mA	Ruthenium (Ru)	85 °C	-40 °C	Through Hole	16.8 VDC	1.6 ms	24 VDC	3.6 VDC	1.1 ms	Non Latching	SPDT (1 Form C)	12 mA	175 VDC
TE Connectivity Potter & Brumfield Relays V23100V4024A000	200 VDC 200 VAC	PC Pin	2 kOhms		0.5 A	Ruthenium (Ru)	85 °C	-40 °C	Through Hole	16.8 VDC	0.15 ms	24 VDC	3.6 VDC	750 µs	Non Latching	SPST-NO (1 Form A)	12 mA
TE Connectivity Potter & Brumfield Relays V23100V4524A000	200 VDC 200 VAC	PC Pin	2 kOhms		0.5 A	Ruthenium (Ru)	85 °C	-40 °C	Through Hole	16.8 VDC	0.15 ms	24 VDC	3.6 VDC	750 µs	Non Latching	SPST-NO (1 Form A)	12 mA
TE Connectivity Potter & Brumfield Relays V23100V4305B010	200 VDC 200 VAC	PC Pin	200 Ohms	Diode	0.5 A	Ruthenium (Ru)	85 °C	-40 °C	Through Hole	3.5 VDC	0.15 ms	5 VDC	0.75 VDC	750 µs	Non Latching	DPST-NO (2 Form A)
TE Connectivity Potter & Brumfield Relays V23100V4312C000		PC Pin	500 Ohms		250 mA	Ruthenium (Ru)	85 °C	-40 °C	Through Hole	8.4 VDC	1.6 ms	12 VDC	1.8 VDC	1.1 ms	Non Latching	SPDT (1 Form C)	24 mA	175 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 24.83
		10	$ 23.59
		25	$ 22.34
		50	$ 21.10
		100	$ 19.86
		250	$ 18.62
		500	$ 17.38

Description

General part information

V23100 Series

RELAY REED SPDT 250MA 24V
