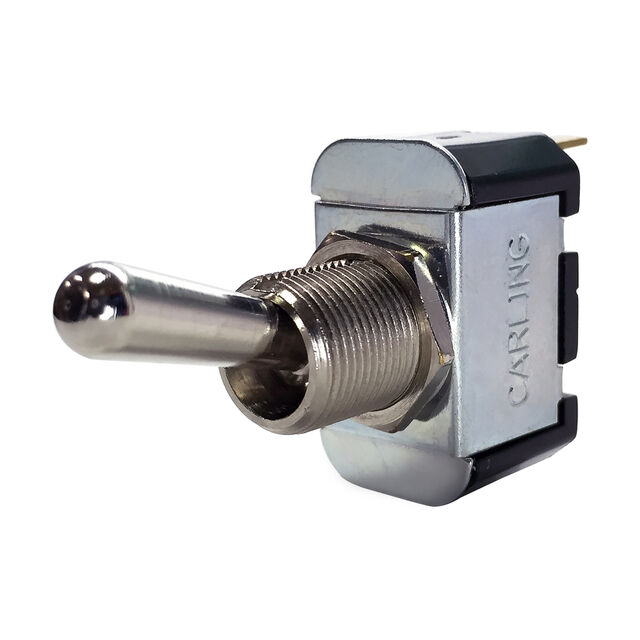

2FA54-78/HDW ASSM

Active

Carling Technologies

SWITCH TOGGLE SPST 15A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2FA54-78/HDW ASSM

Actuator Length [x]	17.45 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPST
Current Rating (Amps)	15 A
Electrical Life	50000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	65.6 °C
Operating Temperature [Min]	-17.8 °C
Panel Cutout Dimensions [diameter]	12.7 mm
Switch Function	On-Off
Termination Style	Screw Terminal
Voltage Rating - AC	125 V

2FA54 Series

Part	Electrical Life	Actuator Length [x]	Circuit	Termination Style	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Bushing Thread	Actuator Type	Current Rating (Amps)	Voltage Rating - AC	Illumination
Carling Technologies 2FA54-78/HDW ASSM	50000 Cycles	17.45 mm	SPST	Screw Terminal	On-Off	65.6 °C	-17.8 °C	12.7 mm	15/32-32	Standard Round	15 A	125 V	Non-Illuminated
Carling Technologies 2FA54-78/2 HEX	50000 Cycles	17.45 mm	SPST	Screw Terminal	On-Off	65.6 °C	-17.8 °C	12.7 mm	15/32-32	Standard Round	15 A	125 V	Non-Illuminated
Carling Technologies 2FA54-63	50000 Cycles	14.28 mm	SPST	Screw Terminal	On-Off	65.6 °C	-17.8 °C	12.7 mm	15/32-32	Standard Round	15 A	125 V	Non-Illuminated
Carling Technologies 2FA54-73/END TERM	50000 Cycles	17.45 mm	SPST	Screw Terminal	On-Off	65.6 °C	-17.8 °C	12.7 mm	15/32-32	Standard Round	15 A	125 V	Non-Illuminated
Carling Technologies 2FA54-78	50000 Cycles	17.45 mm	SPST	Screw Terminal	On-Off	65.6 °C	-17.8 °C	12.7 mm	15/32-32	Standard Round	15 A	125 V	Non-Illuminated
Carling Technologies 2FA54-52	50000 Cycles	10.31 mm	SPST	Screw Terminal	On-Off	65.6 °C	-17.8 °C	12.7 mm	15/32-32	Standard Round	15 A	125 V	Non-Illuminated
Carling Technologies 2FA54-57	50000 Cycles	10.31 mm	SPST	Screw Terminal	On-Off	65.6 °C	-17.8 °C	12.7 mm	15/32-32	Standard Round	15 A	125 V	Non-Illuminated
Carling Technologies 2FA54-E8	50000 Cycles	50.8 mm	SPST	Screw Terminal	On-Off	65.6 °C	-17.8 °C	12.7 mm	15/32-32	Standard Round	15 A	125 V	Non-Illuminated
Carling Technologies 2FA54-A2	50000 Cycles	1 in	SPST	Screw Terminal	On-Off	65.6 °C	-17.8 °C	12.7 mm	15/32-32	Standard Round	15 A	125 V	Non-Illuminated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	11	$ 9.84

Description

General part information

2FA54 Series

Toggle Switch SPST Panel Mount
