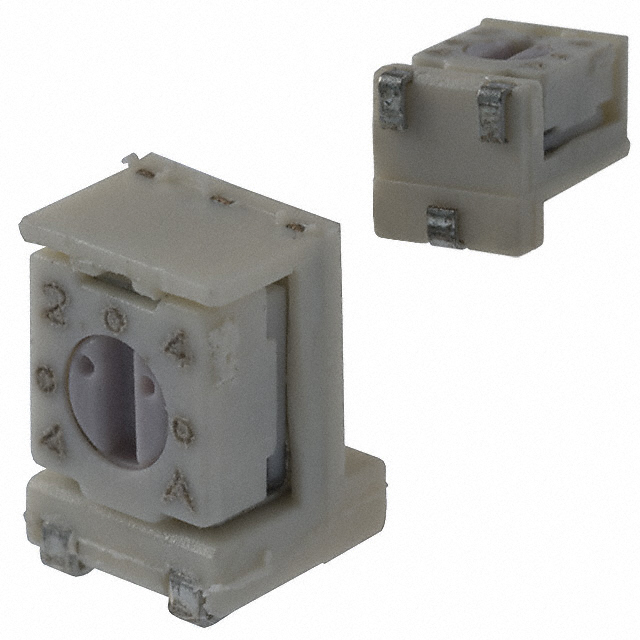

3313S-1-100E

Active

Bourns Inc.

TRIMMER 10OHM 0.125W J LEAD SIDE

Search across all available documentation for this part.

Active

Bourns Inc.

TRIMMER 10OHM 0.125W J LEAD SIDE

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Resistance	Number of Turns	Power (Watts)	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Mounting Type	Resistive Material	Adjustment Type	Temperature Coefficient
Bourns Inc. 3313S-1-201E	J Lead	200 Ohms	1	0.125 W	0.125 W	4.05 mm	0.142 in	3.61 mm	0.159 "	20 %	Surface Mount	Cermet	Side Adjustment	100 ppm/°C
Bourns Inc. 3313S-1-100E	J Lead	10 Ohms	1	0.125 W	0.125 W	4.05 mm	0.142 in	3.61 mm	0.159 "	20 %	Surface Mount	Cermet	Side Adjustment	150 ppm/°C
Bourns Inc. 3313S-2-503E	J Lead	50 kOhms	1	0.125 W	0.125 W	4.05 mm	0.142 in	3.61 mm	0.159 "	20 %	Surface Mount	Cermet	Side Adjustment	100 ppm/°C
Bourns Inc. 3313S-1-104E	J Lead	100 kOhms	1	0.125 W	0.125 W	4.05 mm	0.142 in	3.61 mm	0.159 "	20 %	Surface Mount	Cermet	Side Adjustment	100 ppm/°C
Bourns Inc. 3313S-1-203E	J Lead	20 kOhms	1	0.125 W	0.125 W	4.05 mm	0.142 in	3.61 mm	0.159 "	20 %	Surface Mount	Cermet	Side Adjustment	100 ppm/°C
Bourns Inc. 3313S-1-254E	J Lead	250 kOhms	1	0.125 W	0.125 W	4.05 mm	0.142 in	3.61 mm	0.159 "	20 %	Surface Mount	Cermet	Side Adjustment	100 ppm/°C
Bourns Inc. 3313S-2-101E	J Lead	100 Ohms	1	0.125 W	0.125 W	4.05 mm	0.142 in	3.61 mm	0.159 "	20 %	Surface Mount	Cermet	Side Adjustment	150 ppm/°C
Bourns Inc. 3313S-1-205E	J Lead	2 MOhms	1	0.125 W	0.125 W	4.05 mm	0.142 in	3.61 mm	0.159 "	20 %	Surface Mount	Cermet	Side Adjustment	100 ppm/°C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	200	$ 1.60

General part information

10 Ohms 0.125W, 1/8W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Side Adjustment

Technical documentation and resources
