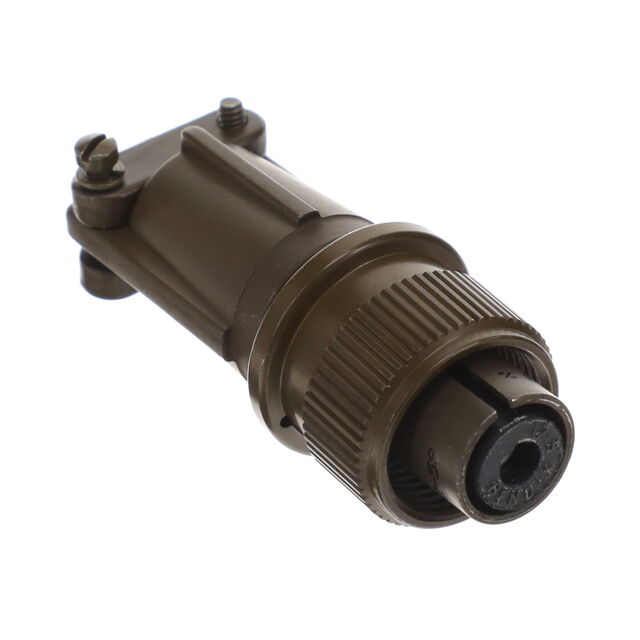

MS3106E12-5S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED CONN PLU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3106E12-5S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED CONN PLU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106E12-5S

Applications	Military, Marine
Cable Opening [diameter]	7.14 mm
Cable Opening [diameter]	0.281 in
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	23 A
Features	Cable Clamp, Coupling Nut, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	12-5
Shielding	Unshielded
Voltage Rating	1250 VDC, 900 VAC

MS3106E12 Series

Part	Number of Positions	Shell Size - Insert	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Qualification	Orientation	Connector Type	Primary Material	Cable Opening [diameter]	Cable Opening [diameter]	Ingress Protection	Applications	Shell Material	Mounting Type	Insert Material	Shielding	Contact Material	Features	Shell Finish	Current Rating (Amps)	Voltage Rating	Grade
Amphenol Industrial Operations MS3106E12S-3S	2	12S-3	Olive Drab	-55 °C	125 °C	Silver	MIL-5015	N	Female Sockets Plug	Metal	7.14 mm	0.281 in	Environment Resistant	Marine Military	Aluminum Alloy	Free Hanging (In-Line)	Neoprene	Unshielded	Copper Alloy	Backshell Cable Clamp Coupling Nut	Olive Drab Chromate over Cadmium
Amphenol Industrial Operations MS3106E12-5S	1	12-5	Olive Drab	-55 °C	125 °C	Silver	MIL-DTL-5015	N	Female Sockets Plug	Metal	7.14 mm	0.281 in	Environment Resistant	Marine Military	Aluminum Alloy	Free Hanging (In-Line)	Neoprene	Unshielded	Copper Alloy	Backshell Cable Clamp Coupling Nut	Olive Drab Chromate over Cadmium	23 A	900 VAC 1250 VDC	Military
Amphenol Industrial Operations MS3106E12S-62S
Amphenol Industrial Operations MS3106E12S-2S
Amphenol Industrial Operations MS3106E12S-54S
Amphenol Industrial Operations MS3106E12S-4S
Amphenol Industrial Operations MS3106E12S-54P
Amphenol Industrial Operations MS3106E12S-3SW	2	12S-3	Olive Drab	-55 °C	125 °C	Silver	MIL-5015	W	Female Sockets Plug	Metal	7.14 mm	0.281 in	Environment Resistant	Marine Military	Aluminum Alloy	Free Hanging (In-Line)	Neoprene	Unshielded	Copper Alloy	Backshell Cable Clamp Coupling Nut	Olive Drab Chromate over Cadmium

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 52.59
		10	$ 48.26
		25	$ 46.40
		50	$ 44.86
		100	$ 42.38

Description

General part information

MS3106E12 Series

1 Position Circular Connector Plug, Female Sockets Solder Cup
