2966537

Obsolete

Phoenix Contact

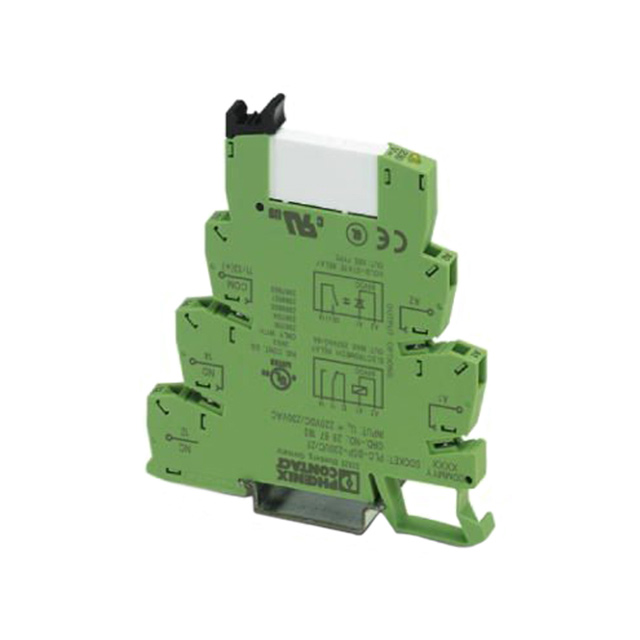

RELAY GEN PURPOSE SPDT 6A 230V

Deep-Dive with AI

Search across all available documentation for this part.

2966537

Obsolete

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 230V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2966537

Coil Current	3.2 mA
Coil Resistance	71.86 kOhms
Coil Type	Non Latching
Coil Voltage	230 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Operate Time	7 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	15 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Spring Terminal

29665 Series

Part	Coil Voltage	Contact Material	Contact Form	Relay Type	Coil Resistance	Coil Current	Operate Time	Features	Termination Style	Switching Voltage	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Coil Type	Mounting Type
Phoenix Contact 2966537	230 VAC	Silver Tin Oxide (AgSnO)	SPDT (1 Form C)	General Purpose	71.86 kOhms	3.2 mA	7 ms	Lighted Indicator Socket Included	Spring Terminal	250 VAC 250 VDC	6 A	55 °C	-25 °C	15 ms	Non Latching	DIN Rail
Phoenix Contact 2966579	12 VDC	Gold (Au) Silver Tin Oxide (AgSnO)	SPDT (1 Form C)	General Purpose	784 Ohms	15.3 mA	5 ms	Diode Lighted Indicator Socket Included	Spring Terminal	30 VAC 36 VDC	50 mA	60 °C	-40 °C	8 ms	Non Latching	DIN Rail
Phoenix Contact 2966540	24 VDC	Gold (Au) Silver (Ag)	SPDT (1 Form C)	General Purpose	2.67 kOhms	9 mA	5 ms	Lighted Indicator Socket Included	Spring Terminal	30 VAC 36 VDC	50 mA	60 °C	-25 °C	8 ms	Non Latching	DIN Rail
Phoenix Contact 2966582	120 VAC 120 VDC	Gold (Au) Silver (Ag)	SPDT (1 Form C)	General Purpose	34.29 kOhms	3.5 mA	6 ms	Lighted Indicator Socket Included	Spring Terminal	30 VAC 36 VDC	50 mA	55 °C	-25 °C	15 ms	Non Latching	DIN Rail
Phoenix Contact 2966553	24 VAC	Gold (Au) Silver Tin Oxide (AgSnO)	SPDT (1 Form C)	General Purpose	2.182 kOhms	11 mA	6 ms	Lighted Indicator Socket Included	Spring Terminal	250 VAC 250 VDC	6 A	60 °C	-40 °C	15 ms	Non Latching	DIN Rail
Phoenix Contact 2966511	60 VDC	Silver Tin Oxide (AgSnO)	SPDT (1 Form C)	General Purpose	12.5 kOhms		5 ms	Diode Lighted Indicator	Spring Terminal	250 VAC 250 VDC	6 A	60 °C	-40 °C	8 ms	Non Latching	DIN Rail
Phoenix Contact 2966524	120 VAC 120 VDC	Silver Tin Oxide (AgSnO)	SPDT (1 Form C)	General Purpose	34.29 kOhms	3.5 mA	6 ms	Lighted Indicator Socket Included	Spring Terminal	250 VAC 250 VDC	6 A	55 °C	-25 °C	15 ms	Non Latching	DIN Rail

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

29665 Series

General Purpose Relay SPDT (1 Form C) 230VAC/DC Coil DIN Rail
