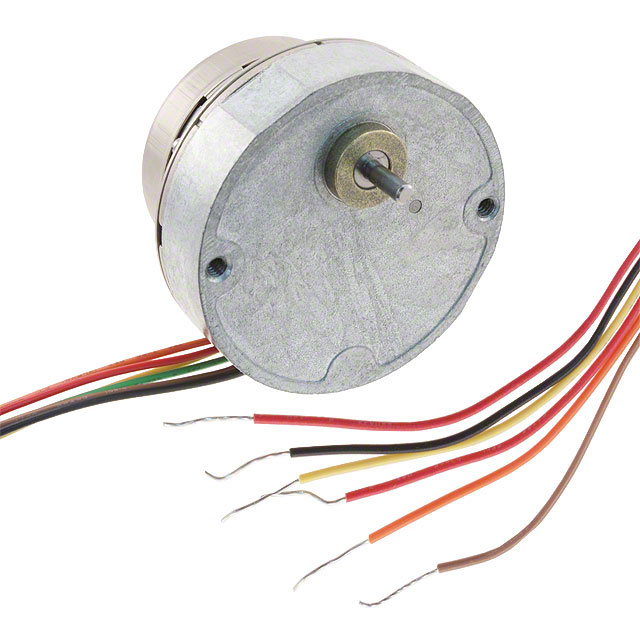

42M048C2U-R21
ActivePortescap
STEPPER MOTOR PM GEARED UNI 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
42M048C2U-R21
ActivePortescap
STEPPER MOTOR PM GEARED UNI 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 42M048C2U-R21 |
|---|---|
| Coil Resistance | 52.4 Ohms |
| Coil Type | Unipolar |
| Current Rating (Amps) | 0.23 A |
| Diameter - Shaft [diameter] | 0.093 in |
| Diameter - Shaft [diameter] | 2.36 mm |
| Features | Round Shaft |
| Length - Shaft and Bearing [x] | 0.469 in |
| Length - Shaft and Bearing [x] | 11.92 mm |
| Mounting Hole Spacing | 47.63 mm |
| Mounting Hole Spacing | 1.88 in |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Rotor Inertia | 12.5 gcm˛ |
| Size / Dimension [diameter] | 42 mm |
| Size / Dimension [diameter] | 1.65 in |
| Step Angle | 0.75 ° |
| Steps per Revolution | 480 |
| Termination Style | Wire Leads |
| Torque - Holding (oz-in / mNm) | 9.4 oz-in |
| Torque - Holding (oz-in / mNm) | 66.2 mNm |
| Type | Permanent Magnet Gear Motor |
| Voltage - Rated | 12 VDC |
| Weight | 312.07 g |
| Weight | 0.688 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 47.07 | |
| 5 | $ 46.26 | |||
| 10 | $ 45.45 | |||
| 25 | $ 44.63 | |||
Description
General part information
42M048 Series
Unipolar Stepper Motor Permanent Magnet Gear Motor Frame Size 480.0 Step 230 mA 12VDC
