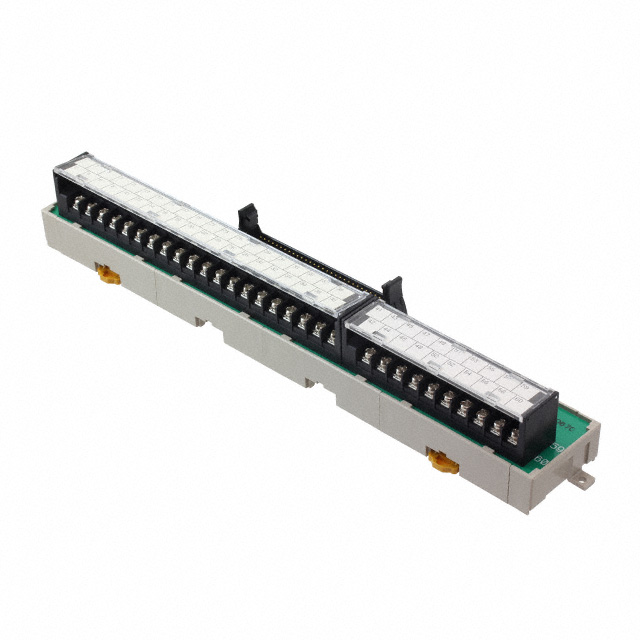

XW2B-60G5

Obsolete

Omron Electronics Inc-EMC Div

INTERFACE MODULE HDR 60POS

Search across all available documentation for this part.

Obsolete

Omron Electronics Inc-EMC Div

INTERFACE MODULE HDR 60POS

Technical Specifications

Parameters and characteristics for this part

Specification	XW2B-60G5

Control Side Cable Retainer	Latches
Control Side Connection [custom]	Male
Control Side Connection [custom]	Rectangular
Current Rating (Per Contact)	1 A
Length [x]	11.516 in
Length [x]	292.51 mm
Positions / Poles	60
Process Side Connection	Terminal Blocks - Screw Connection
Voltage - Rated	125 VAC
Width	45 mm
Width [x]	1.772 in

Part	Width	Width [x]	Process Side Connection	Voltage - Rated	Positions / Poles	Length [x]	Length [x]	Current Rating (Per Contact)	Control Side Cable Retainer	Control Side Connection [custom]	Control Side Connection [custom]	Length	Length	Wire Gauge [Max]	Wire Gauge [Min]
Omron Electronics Inc-EMC Div XW2B-60G5	45 mm	1.772 in	Terminal Blocks - Screw Connection	125 VAC	60	11.516 in	292.51 mm	1 A	Latches	Male	Rectangular
Omron Electronics Inc-EMC Div XW2B-60G4	45 mm	1.772 in	Terminal Blocks - Screw Connection	125 VAC	60			1 A	Latches	Male	Rectangular	7.087 in	180.01 mm	22 AWG	16 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

60 Position Interface Module Terminal Blocks - Screw Connection To Rectangular, Male
