C091 31H008 100 4

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 8P SILV SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 8P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Shell Finish	Current Rating (Amps)	Voltage Rating	Contact Finish - Mating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Primary Material	Shell Size - Insert	Shell Material	Features	Ingress Protection	Mounting Type	Orientation	Color	Shielding
Amphenol Tuchel Industrial C091 31H008 100 4	Nickel	3 A	32 V	Silver	8	100 °C	-40 °C	Male Pins Plug	Metal	M16-8	Zinc Die Cast	Backshell Coupling Nut	IP68 - Dust Tight Waterproof	Free Hanging (In-Line)	Keyed	Silver
Amphenol Tuchel Industrial C091 31H008 200 2	Nickel	7 A	60 VDC	Gold	8	100 °C	-40 °C	Male Pins Plug	Metal	M16-8	Die Cast	Strain Relief	IP65 IP67 IP69K	Free Hanging (In-Line)	Keyed	Silver	Shielded
Amphenol Tuchel Industrial C091 31H008 201 2	Nickel	7 A	60 VDC	Gold	8	100 °C	-40 °C	Male Pins Plug	Metal	M16-8	Die Cast	Strain Relief	IP65 IP67 IP69K	Free Hanging (In-Line)	Keyed	Silver	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

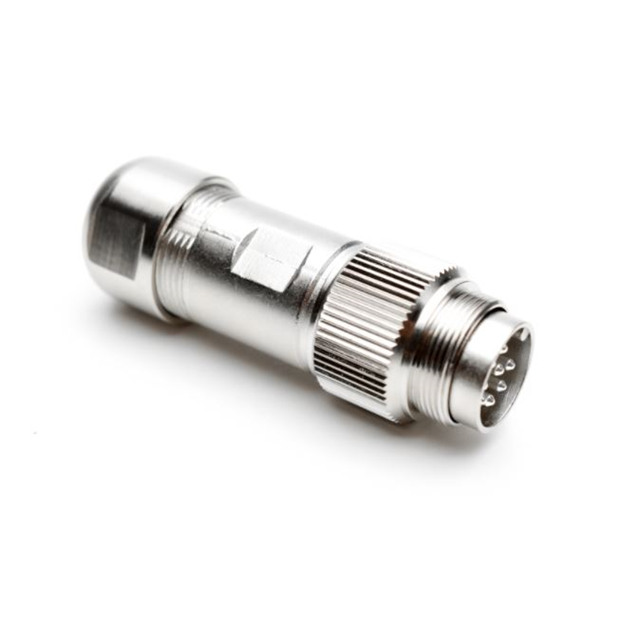

8 Position Circular Connector Plug, Male Pins Solder Cup
