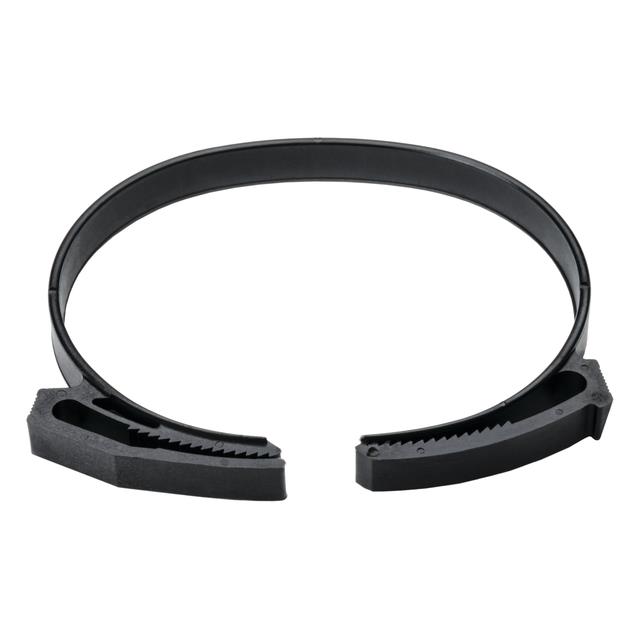

SNP70GHS0C2

Active

HELLERMANNTYTON

CBL CLIP HOSE BLACK

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CBL CLIP HOSE BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	SNP70GHS0C2

Color	Black
Features	Impact Resistant, Heat Stabilized
Length [Max]	76.71 mm
Length [Max]	3.02 in
Length [Min]	46.58 mm
Length [Min]	1.834 in
Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 HB
Material Thickness	1.98 mm
Material Thickness	0.078 in
Opening Size [Max] [z]	2.961 in
Opening Size [Max] [z]	75.21 mm
Opening Size [Min] [z]	2.562 in
Opening Size [Min] [z]	65.07 mm
Type	Clamp, Hose
Type Attributes	Push-Fit
Width [x]	9.5 mm
Width [x]	0.374 "

Part	Material	Material Flammability Rating	Length [Max]	Length [Max]	Length [Min]	Length [Min]	Type	Material Thickness	Material Thickness	Color	Features	Opening Size [Min] [z]	Opening Size [Min] [z]	Opening Size [Max] [z]	Opening Size [Max] [z]	Type Attributes	Width [x]	Width [x]
HELLERMANNTYTON SNP70GHS0C2	Polyamide (PA66) Nylon 6/6 Glass Filled	UL94 HB	76.71 mm	3.02 in	46.58 mm	1.834 in	Clamp Hose	1.98 mm	0.078 in	Black	Heat Stabilized Impact Resistant	2.562 in	65.07 mm	2.961 in	75.21 mm	Push-Fit	9.5 mm	0.374 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2500	$ 2.12
