Q-0302I0005084i

Active

Amphenol Custom Cable

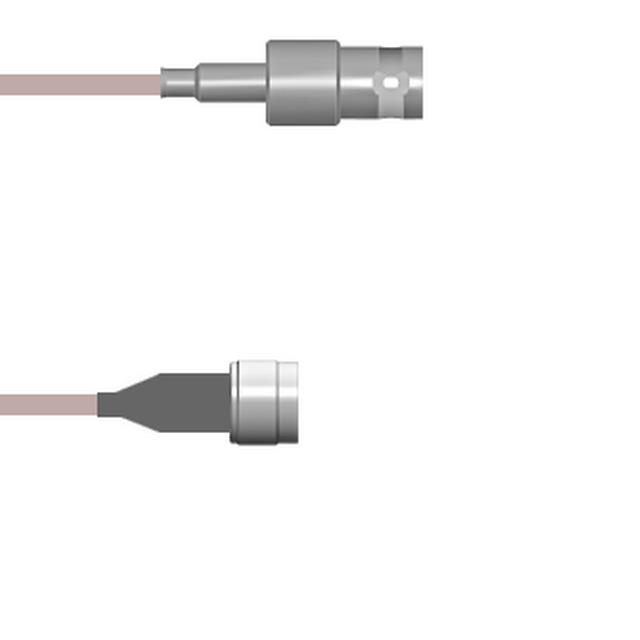

COAX CBL BNC TO N-TYPE 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0302I0005084i

Active

Amphenol Custom Cable

COAX CBL BNC TO N-TYPE 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0302I0005084i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0302I0 Series

Part	2nd Contact Gender	1st Connector	Cable Type	Overall Impedance	Features	2nd Connector	Length	Length	1st Connector Mounting Type	2nd Connector Mounting Type	Frequency - Max [Max]	Style	Color	1st Contact Gender	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-0302I00050.5M	Male	BNC Jack	RG-316	50 Ohms	Shielded	N-Type Plug	50 cm	19.69 "	Free Hanging (In-Line)	Free Hanging (In-Line)	4 GHz	BNC to N-Type	Copper	Female
Amphenol Custom Cable Q-0302I0005018i	Male	BNC Jack	RG-316	50 Ohms	Shielded	N-Type Plug			Free Hanging (In-Line)	Free Hanging (In-Line)	4 GHz	BNC to N-Type	Copper	Female	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0302I0003024i	Male	BNC Jack	RG-174	50 Ohms	Shielded	N-Type Plug	609.6 mm	24 "	Free Hanging (In-Line)	Free Hanging (In-Line)	4 GHz	BNC to N-Type	Black	Female
Amphenol Custom Cable Q-0302I0005001M	Male	BNC Jack	RG-316	50 Ohms	Shielded	N-Type Plug	1 m	39.4 in	Free Hanging (In-Line)	Free Hanging (In-Line)	4 GHz	BNC to N-Type	Copper	Female			3.3 ft
Amphenol Custom Cable Q-0302I0005060i	Male	BNC Jack	RG-316	50 Ohms	Shielded	N-Type Plug	1.5 m	5 '	Free Hanging (In-Line)	Free Hanging (In-Line)	4 GHz	BNC to N-Type	Copper	Female			5 ft
Amphenol Custom Cable Q-0302I0003012i	Male	BNC Jack	RG-174	50 Ohms	Shielded	N-Type Plug	304.8 mm	12 "	Free Hanging (In-Line)	Free Hanging (In-Line)	4 GHz	BNC to N-Type	Black	Female
Amphenol Custom Cable Q-0302I0005084i	Male	BNC Jack	RG-316	50 Ohms	Shielded	N-Type Plug	2.1 m	84 in	Free Hanging (In-Line)	Free Hanging (In-Line)	4 GHz	BNC to N-Type	Copper	Female			7 ft
Amphenol Custom Cable Q-0302I0005006i	Male	BNC Jack	RG-316	50 Ohms	Shielded	N-Type Plug	152.4 mm	6 in	Free Hanging (In-Line)	Free Hanging (In-Line)	4 GHz	BNC to N-Type	Copper	Female
Amphenol Custom Cable Q-0302I00051.5M	Male	BNC Jack	RG-316	50 Ohms	Shielded	N-Type Plug	1.5 m	59.1 in	Free Hanging (In-Line)	Free Hanging (In-Line)	4 GHz	BNC to N-Type	Copper	Female			4.9 ft
Amphenol Custom Cable Q-0302I0003002M	Male	BNC Jack	RG-174	50 Ohms	Shielded	N-Type Plug	2 m	78.7 in	Free Hanging (In-Line)	Free Hanging (In-Line)	4 GHz	BNC to N-Type	Black	Female			6.6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 104.64
		25	$ 102.58
		50	$ 100.52
		100	$ 98.45
		250	$ 96.39

Description

General part information

Q-0302I0 Series

Cable Assembly Coaxial BNC to N-Type RG-316 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
