ITNF-0135-D101

Active

SCHURTER Inc.

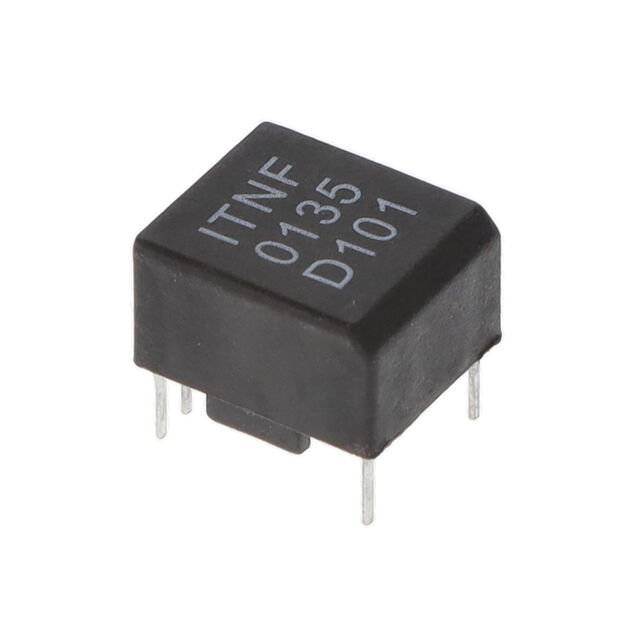

ITNF PULSE TRANSFORMER THT 0.1A

Search across all available documentation for this part.

Active

SCHURTER Inc.

ITNF PULSE TRANSFORMER THT 0.1A

Technical Specifications

Parameters and characteristics for this part

Specification	ITNF-0135-D101

Height - Seated (Max) [Max] [z]	10.6 mm
Height - Seated (Max) [Max] [z]	0.417 in
Mounting Type	Through Hole
Operating Temperature [custom]	100 °C, -25 °C
Size / Dimension [x]	13 mm
Size / Dimension [x]	0.512 in
Size / Dimension [y]	15.2 mm
Size / Dimension [y]	0.598 in
Transformer Type	Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary [custom]	1
Turns Ratio - Primary:Secondary [custom]	1
Turns Ratio - Primary:Secondary [custom]	1
Weight	3.13 g
Weight	0.11 oz

Part	Operating Temperature [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Mounting Type	Weight	Weight	Transformer Type	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
SCHURTER Inc. ITNF-0239-D202	-25 °C 100 °C	0.878 in	0.894 in	22.3 mm	22.7 mm	1	1	1	Through Hole	0.35 oz	9.97 g	Isolation and Data Interface (Encapsulated)	1.6 mH
SCHURTER Inc. ITNF-0135-D101	-25 °C 100 °C	0.512 in	0.598 in	13 mm	15.2 mm	1	1	1	Through Hole	0.11 oz	3.13 g	Isolation and Data Interface (Encapsulated)		10.6 mm	0.417 in
SCHURTER Inc. ITNF-0249-D101	-25 °C 100 °C			0.701 in 17.8 mm	0.717 in 18.2 mm	1	1	1	Through Hole	0.32 oz	9.12 g	Isolation and Data Interface (Encapsulated)	1.4 mH	13 mm	0.512 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.1mH Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1:1 Through Hole
