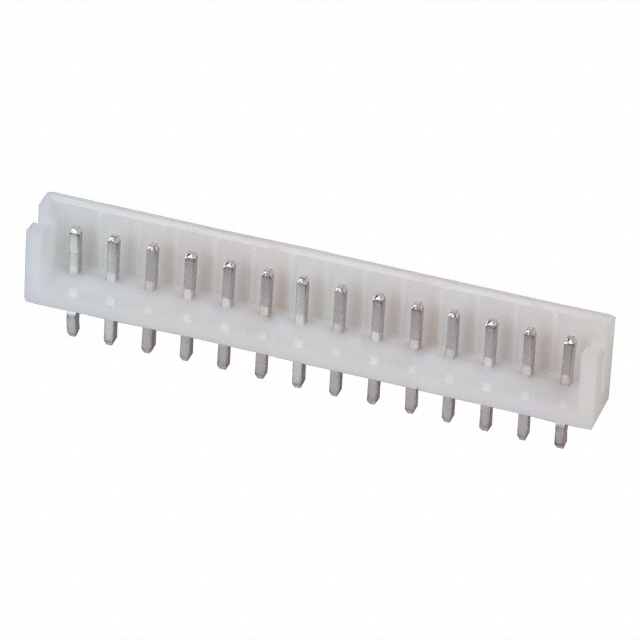

B14B-EH-A

Active

JST Sales America Inc.

CONN HEADER VERT 14POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 14POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	B14B-EH-A

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.13 in
Contact Length - Mating	3.3 mm
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	6 mm
Insulation Height	0.236 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Mated Stacking Heights	8.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 3 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	250 VDC

Part	Contact Length - Post	Contact Length - Post [x]	Style	Connector Type	Termination	Contact Finish - Post	Mated Stacking Heights	Shrouding	Insulation Color	Voltage Rating	Mounting Type	Insulation Material	Contact Material	Contact Type	Number of Positions Loaded	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Positions	Contact Shape	Number of Rows	Current Rating (Amps)	Fastening Type	Contact Length - Mating	Contact Length - Mating
JST Sales America Inc. B14B-EH-A	3.2 mm	0.126 in	Board to Cable/Wire	Header	Press-Fit Solder	Tin	8.1 mm	Shrouded - 3 Wall	Natural	250 VDC	Through Hole	Polyamide (PA66) Nylon 6/6	Brass	Male Pin	All	UL94 V-0	2.5 mm	0.098 in	-25 °C	85 °C	6 mm	0.236 in	14	Square	1	3 A	Friction Lock	0.13 in	3.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 14 position 0.098" (2.50mm)
