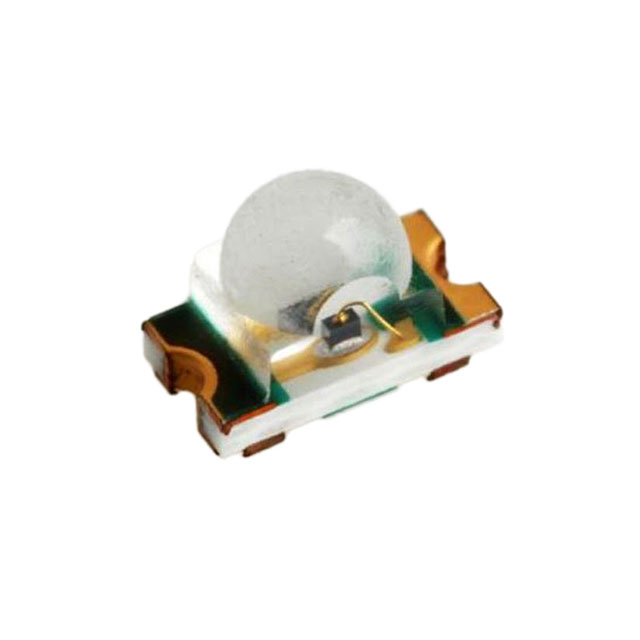

VCKB1111CS-TR
ObsoleteStanley Electric Co
LED BLUE SMD
Deep-Dive with AI
Search across all available documentation for this part.
VCKB1111CS-TR
ObsoleteStanley Electric Co
LED BLUE SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VCKB1111CS-TR |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.8 mm |
| Lens Color | White |
| Lens Size [x] | 1.2 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 110 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Viewing Angle | 155 °, 165 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength - Dominant | 468 nm |
| Wavelength - Peak | 463 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.52 | |
| 10 | $ 0.34 | |||
Description
General part information
VCKB1111 Series
Blue 468nm LED Indication - Discrete 3.3V 0603 (1608 Metric)
