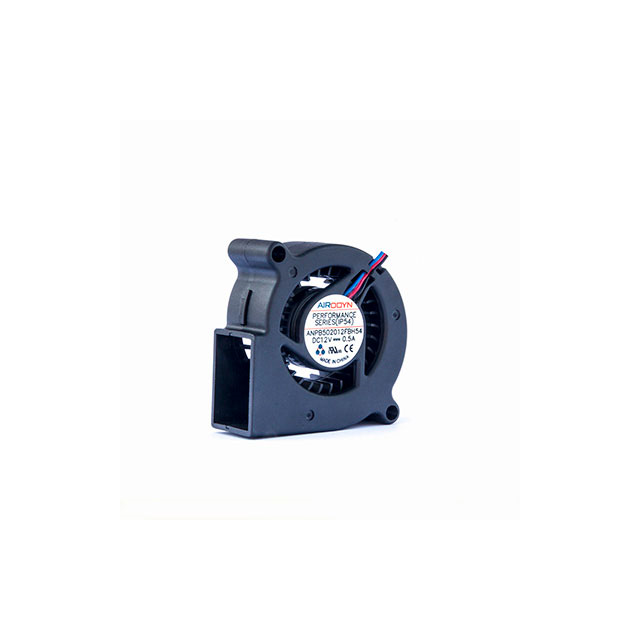

ANPB502012FBH54-01
ActiveEuropean Thermodynamics Ltd
FAN BLOWER 50X20MM 12VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANPB502012FBH54-01 |
|---|---|
| Air Flow | 6.1 CFM |
| Air Flow | 0.171 m³/min |
| Approval Agency | CE, cURus |
| Bearing Type | Ball |
| Fan Type | Blower |
| Features | Locked Rotor Sensor |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Lifetime @ Temp. | 70000 Hrs |
| Noise | 40 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 3.6 W |
| Size / Dimension | Square/Rounded |
| Size / Dimension [x] | 50 mm |
| Size / Dimension [z] | 50 mm |
| Static Pressure | 0.85 in H2O |
| Static Pressure | 211.7 Pa |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Width [y] | 20 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 16.46 | |
| 10 | $ 14.68 | |||
| 25 | $ 14.02 | |||
| 50 | $ 13.54 | |||
| 100 | $ 13.08 | |||
| 250 | $ 12.50 | |||
| 500 | $ 12.07 | |||
Description
General part information
ANPB502012 Series
Fan Blower 12VDC Square/Rounded - 50mm L x 50mm H Ball 6.1 CFM (0.171m³/min) 3 Wire Leads
