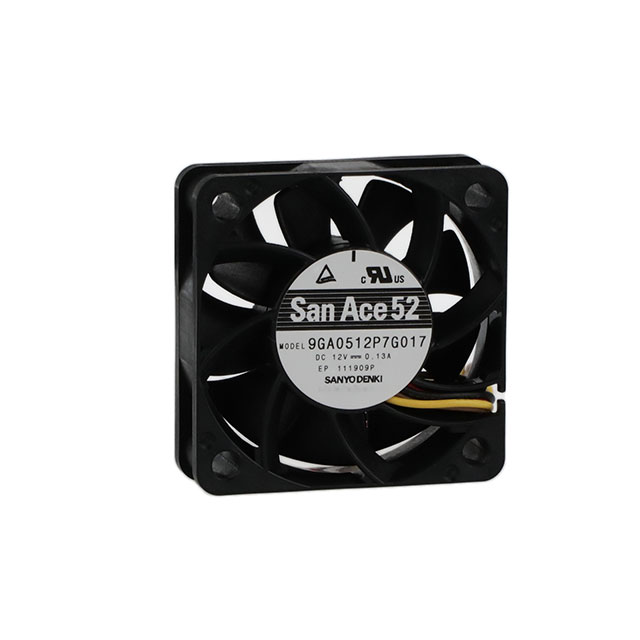

9GA0512P7G017

Active

Sanyo Denki America Inc.

FAN AXL 52X15MM 12VDC RECT CONN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Handling Instructions for Fan Motors

9GA0512P7G017

Active

Sanyo Denki America Inc.

FAN AXL 52X15MM 12VDC RECT CONN

Deep-Dive with AI

DocumentsDatasheet Handling Instructions for Fan Motors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9GA0512P7G017

Bearing Type	Ball
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Material - Blade	Plastic
Material - Frame	Plastic
Noise	38 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
RPM	7800 RPM
Size / Dimension [x]	52 mm
Size / Dimension [z]	52 mm
Termination	4 Position Rectangular Connector
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	10.2 VDC
Weight	0.089 lb
Weight	40.37 g
Width [x]	15 mm

9GA0512 Series

Part	Width [x]	Termination	RPM	Static Pressure	Static Pressure	Current Rating (Amps)	Power (Watts)	Fan Type	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Approval Agency	Material - Frame	Voltage - Rated	Size / Dimension [x]	Size / Dimension [z]	Air Flow	Air Flow	Weight	Weight	Lifetime @ Temp.	Bearing Type	Features
Sanyo Denki America Inc. 9GA0512M7002	15 mm	2 Wire Leads	3400 RPM	17 Pa	0.068 in H2O	40 mA	0.48 W	Tubeaxial	16 dB	-20 °C	70 °C	-20 C	70 °C	Plastic	10.2 VDC	13.8 VDC	CSA TUV UL	Plastic	12 VDC	52 mm	52 mm	7.6 CFM	0.213 mł/min	0.089 lb	40.37 g	40000 Hrs	Ball
Sanyo Denki America Inc. 9GA0512G7001	15 mm	3 Wire Leads	7800 RPM	91.5 Pa	0.367 in H2O		1.56 W	Tubeaxial	38 dB(A)	-20 °C	70 °C	-20 C	70 °C	Plastic	10.2 VDC	13.8 VDC	CSA TUV UL	Plastic	12 VDC	52 mm	52 mm			0.089 lb	40.37 g	40000 Hrs	Ball	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0512P7G017	15 mm	4 Position Rectangular Connector	7800 RPM					Tubeaxial	38 dB(A)	-20 °C	70 °C	-20 C	70 °C	Plastic	10.2 VDC	13.8 VDC		Plastic	12 VDC	52 mm	52 mm			0.089 lb	40.37 g		Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0512H7001	15 mm	3 Wire Leads	4300 RPM	27.4 Pa	0.11 in H2O	50 mA	600 mW	Tubeaxial	22 dB(A)	-20 °C	70 °C	-20 C	70 °C	Plastic	10.2 VDC	13.8 VDC	CSA TUV UL	Plastic	12 VDC	52 mm	52 mm	9.7 CFM	0.272 m³/min	0.089 lb	40.37 g	40000 Hrs	Ball	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0512G7002	15 mm	2 Wire Leads	7800 RPM	91.5 Pa	0.367 in H2O		1.56 W	Tubeaxial	38 dB(A)	-20 °C	70 °C	-20 C	70 °C	Plastic	10.2 VDC	13.8 VDC	CSA TUV UL	Plastic	12 VDC	52 mm	52 mm			0.089 lb	40.37 g	40000 Hrs	Ball
Sanyo Denki America Inc. 9GA0512A7001	15 mm	3 Wire Leads	6300 RPM	59 Pa	0.237 in H2O			Tubeaxial	32 dB	-20 °C	70 °C	-20 C	70 °C	Plastic	10.2 VDC	13.8 VDC	CSA TUV UL	Plastic	12 VDC	52 mm	52 mm			0.089 lb	40.37 g	40000 Hrs	Ball	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0512P7A001	15 mm	4 Wire Leads	6300 RPM	59 Pa	0.237 in H2O			Tubeaxial	32 dB	-20 °C	70 °C	-20 C	70 °C	Plastic	10.2 VDC	13.8 VDC	CSA TUV UL	Plastic	12 VDC	52 mm	52 mm			0.088 lb	39.92 g	40000 Hrs	Ball	PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0512M7001	15 mm	3 Wire Leads	3400 RPM	17 Pa	0.068 in H2O	40 mA	0.48 W	Tubeaxial	16 dB	-20 °C	70 °C	-20 C	70 °C	Plastic	10.2 VDC	13.8 VDC	CSA TUV UL	Plastic	12 VDC	52 mm	52 mm			0.089 lb	40.37 g	40000 Hrs	Ball	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0512A7002	15 mm	2 Wire Leads	6300 RPM	59 Pa	0.237 in H2O			Tubeaxial	32 dB	-20 °C	70 °C	-20 C	70 °C	Plastic	10.2 VDC	13.8 VDC	CSA TUV UL	Plastic	12 VDC	52 mm	52 mm			0.089 lb	40.37 g	40000 Hrs	Ball
Sanyo Denki America Inc. 9GA0512P7G001	15 mm	4 Wire Leads	7800 RPM	91.5 Pa	0.367 in H2O		1.56 W	Tubeaxial	38 dB(A)	-20 °C	70 °C	-20 C	70 °C	Plastic	10.2 VDC	13.8 VDC	CSA TUV UL	Plastic	12 VDC	52 mm	52 mm			0.088 lb	39.92 g	40000 Hrs	Ball	PWM Control Speed Sensor (Tach)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 14.54
		10	$ 12.97
		25	$ 12.39
		50	$ 12.21

Description

General part information

9GA0512 Series

Fan Tubeaxial 12VDC Square - 52mm L x 52mm H Ball 4 Position Rectangular Connector
