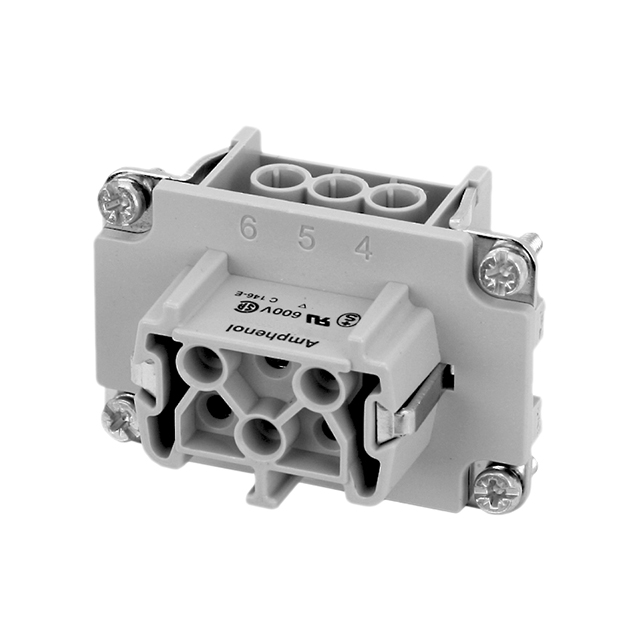

C146 10B006 400 1

Active

Amphenol Tuchel Industrial

INSERT FEMALE 6POS+1GND SCREW

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT FEMALE 6POS+1GND SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10B006 400 1

Color	Gray
Contact Finish	Silver
Contact Material	Brass
Current Rating (Amps)	22 A
Gender	Female
Material Flammability Rating	UL94 V-0
Number of Positions	6+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Screw
Voltage Rating	600 V

Part	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Contact Material	Current Rating (Amps)	Color	Material Flammability Rating	Number of Positions	Voltage Rating	Gender
Amphenol Tuchel Industrial C146 10B006 400 1	Silver	125 °C	-40 °C	Screw	Brass	22 A	Gray	UL94 V-0	6+Ground	600 V	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Female Insert Gray 6+Ground Position Screw

Technical documentation and resources
