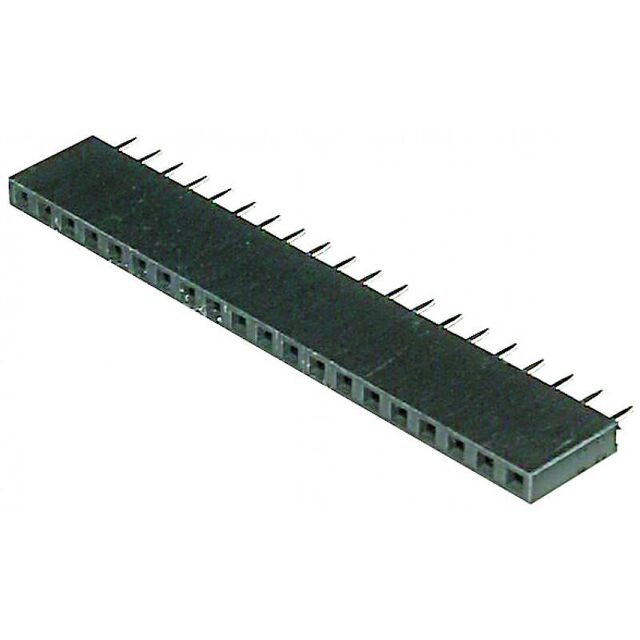

A-BL254-EG-Z40D

Active

Assmann WSW Components

PIN- & FEMALE HEADER FEMALE THR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A-BL254-EG-Z40D

Connector Type	Receptacle
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.5 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

A-BL254-EG Series

...

Part	Termination	Number of Rows	Number of Positions	Number of Positions Loaded	Contact Finish - Mating	Mounting Type	Contact Type	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Insulation Color	Contact Material	Contact Shape	Fastening Type	Insulation Material	Contact Finish Thickness - Mating	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Features	Contact Length - Post	Contact Length - Post [x]
Assmann WSW Components A-BL254-EG-G21MR1	Solder	1	21	All	Gold	Surface Mount	Female Socket	Receptacle	0.1 in	2.54 mm	0.197 in	5 mm	Black	Phosphor Bronze	Square	Push-Pull	Glass Filled Nylon 6T Polyamide (PA6T)	Flash	3 A	105 ░C	-55 °C	UL94 V-0	Pick and Place
Assmann WSW Components A-BL254-EG-G15D	Solder	1	15	All	Gold	Through Hole	Forked	Receptacle	0.1 in	2.54 mm	0.335 "	8.5 mm	Black	Brass	Square	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	Flash	3 A	105 ░C	-55 °C	UL94 V-0		3.2 mm	0.126 in
Assmann WSW Components A-BL254-EG-Z24MP1	Solder	1	24	All		Surface Mount	Female Socket	Receptacle	0.1 in	2.54 mm	0.197 in	5 mm	Black	Phosphor Bronze	Square	Push-Pull	Glass Filled Nylon 6T Polyamide (PA6T)		3 A	105 ░C	-40 °C	UL94 V-0	Pick and Place
Assmann WSW Components A-BL254-EG-Z08MP1	Solder	1	8	All		Surface Mount	Female Socket	Receptacle	0.1 in	2.54 mm	0.197 in	5 mm	Black	Phosphor Bronze	Square	Push-Pull	Glass Filled Nylon 6T Polyamide (PA6T)		3 A	105 ░C	-40 °C	UL94 V-0	Pick and Place
Assmann WSW Components A-BL254-EG-G14MP1	Solder	1	14	All	Gold	Surface Mount	Female Socket	Receptacle	0.1 in	2.54 mm	0.197 in	5 mm	Black	Phosphor Bronze	Square	Push-Pull	Glass Filled Nylon 6T Polyamide (PA6T)	Flash	3 A	105 ░C	-55 °C	UL94 V-0	Pick and Place
Assmann WSW Components A-BL254-EG-G15MP1	Solder	1	15	All	Gold	Surface Mount	Female Socket	Receptacle	0.1 in	2.54 mm	0.197 in	5 mm	Black	Phosphor Bronze	Square	Push-Pull	Glass Filled Nylon 6T Polyamide (PA6T)	Flash	3 A	105 ░C	-55 °C	UL94 V-0	Pick and Place
Assmann WSW Components A-BL254-EG-G03D	Solder	1		All	Gold	Through Hole	Forked	Receptacle	0.1 in	2.54 mm	0.335 "	8.5 mm	Black	Brass	Square	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	Flash	3 A	105 ░C	-55 °C	UL94 V-0		3.2 mm	0.126 in
Assmann WSW Components A-BL254-EG-G10MP1	Solder	1	10	All	Gold	Surface Mount	Female Socket	Receptacle	0.1 in	2.54 mm	0.197 in	5 mm	Black	Phosphor Bronze	Square	Push-Pull	Glass Filled Nylon 6T Polyamide (PA6T)	Flash	3 A	105 ░C	-55 °C	UL94 V-0	Pick and Place
Assmann WSW Components A-BL254-EG-Z40D	Solder	1	40	All		Through Hole	Forked	Receptacle	0.1 in	2.54 mm	0.335 "	8.5 mm	Black	Brass	Square	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled		3 A	105 ░C	-40 °C	UL94 V-0		3.2 mm	0.126 in
Assmann WSW Components A-BL254-EG-Z20MP1	Solder	1	20	All		Surface Mount	Female Socket	Receptacle	0.1 in	2.54 mm	0.197 in	5 mm	Black	Phosphor Bronze	Square	Push-Pull	Glass Filled Nylon 6T Polyamide (PA6T)		3 A	105 ░C	-40 °C	UL94 V-0	Pick and Place

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	6080	$ 0.80

Description

General part information

A-BL254-EG Series

40 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
