6GK58981CV004AA0

Active

Siemens

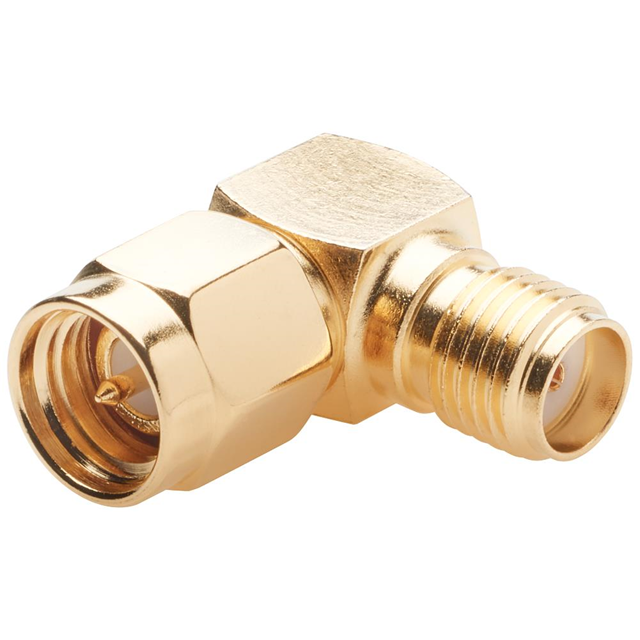

ANGLE ADAPTER SMA/SMA MALE/MALE

Search across all available documentation for this part.

Active

Siemens

ANGLE ADAPTER SMA/SMA MALE/MALE

Technical Specifications

Parameters and characteristics for this part

Specification	6GK58981CV004AA0

Adapter Series	SMA to SMA
Adapter Type	Plug to Jack
Conversion Type	Same Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Ingress Protection	IP61 - Dust Tight
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Style	Right Angle

Part	Conversion Type	Operating Temperature [Min]	Operating Temperature [Max]	Style	Adapter Type	Frequency - Max [Max]	Adapter Series	Convert To (Adapter End)	Mounting Type	Convert From (Adapter End)	Ingress Protection	Impedance
Siemens 6GK58981CV004AA0	Same Series	-20 C	80 C	Right Angle	Plug to Jack	6000 MHz	SMA to SMA	Female Socket SMA Jack	Free Hanging (In-Line) Right Angle	SMA Plug Male Pin	IP61 - Dust Tight	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 28.36

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
