DC0011/05-TG-A373F-0.25-2A

Active

t-Global Technology

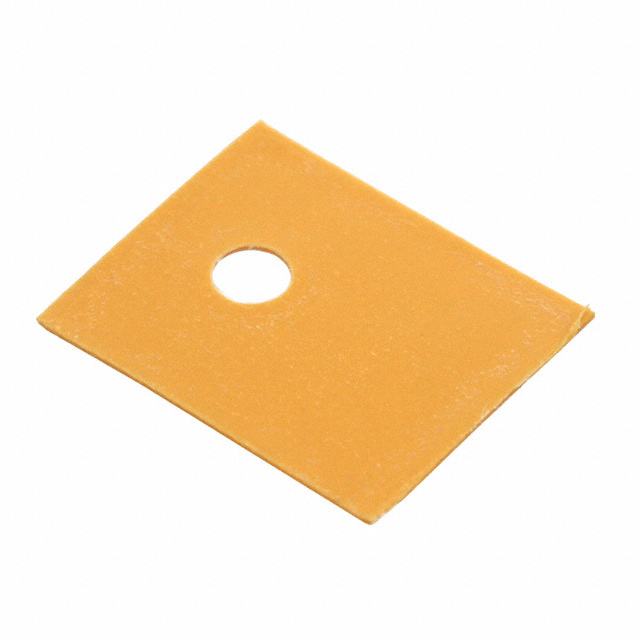

THERM PAD 17.45MMX14.27MM W/ADH

Search across all available documentation for this part.

Active

t-Global Technology

THERM PAD 17.45MMX14.27MM W/ADH

Technical Specifications

Parameters and characteristics for this part

Part	Outline [y]	Outline [x]	Thickness [custom]	Thickness [custom]	Thermal Conductivity	Color	Adhesive	Type	Shelf Life	Shape	Usage	Shelf Life Start	Thickness	Thickness	Material
t-Global Technology DC0011/05-TG-A373F-0.25-2A	14.27 mm	17.45 mm	0.254 mm	0.01 in	1.4 W/m-K	Yellow	Adhesive - Both Sides	Die-Cut Pad Sheet	12 Months	Rectangular	TO-220
t-Global Technology DC0011/05-TG-A486G-0.3-2A	14.27 mm	17.45 mm	0.305 mm	0.012 "	6 W/m-K	Gray	Adhesive - Both Sides	Die-Cut Pad Sheet	12 Months	Rectangular	TO-220	Date of Purchase
t-Global Technology DC0011/05-TG-AH482-2.0-0	14.27 mm	17.45 mm			2.2 W/m-K	Red		Die-Cut Pad Sheet	24 Months	Rectangular	TO-220		0.079 in	2 mm
t-Global Technology DC0011/05-TG-A482K-0.1-0	14.27 mm	17.45 mm			2.3 W/m-K	Red		Die-Cut Pad Sheet	24 Months	Rectangular	TO-220	Date of Purchase	0.0039 in	0.1 mm	Silicone
