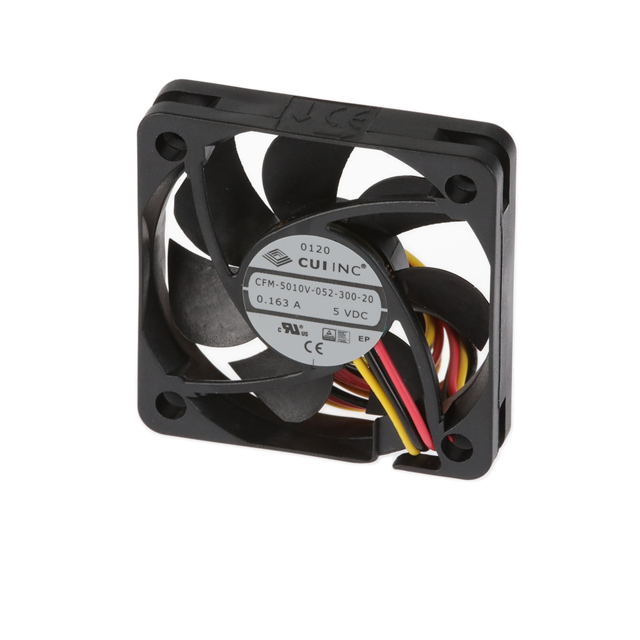

CFM-5010V-052-300-20

Active

CUI Devices

FAN AXIAL 50X10MM 5VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFM-5010V-052-300-20

Active

CUI Devices

FAN AXIAL 50X10MM 5VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CFM-5010V-052-300-20

Air Flow	0.386 mł/min
Air Flow	13.8 CFM
Approval Agency	cURus, CE, TUV
Current Rating (Amps)	179 mA
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	30.7 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.5 W
RPM	5800 RPM
Size / Dimension [x]	50 mm
Size / Dimension [z]	50 mm
Termination	3 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	6 VDC
Voltage Range [Min]	3.5 VDC
Weight	20.87 g
Weight	0.046 lb
Width [y]	10 mm

CFM-5010 Series

Part	Voltage - Rated	Width [y]	Approval Agency	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Air Flow	Air Flow	Size / Dimension [z]	Size / Dimension [x]	Noise	RPM	Voltage Range [Max]	Voltage Range [Min]	Power (Watts)	Material - Blade	Current Rating (Amps)	Lifetime @ Temp.	Weight	Weight	Features	Termination	Fan Type	Static Pressure	Static Pressure	Bearing Type
CUI Devices CFM-5010V-052-300-20	5 V	10 mm	CE cURus TUV	70 °C	70 °C	-10 °C	-10 °C	0.386 mł/min	13.8 CFM	50 mm	50 mm	30.7 dB(A)	5800 RPM	6 VDC	3.5 VDC	1.5 W	Polybutylene Terephthalate (PBT)	179 mA	70000 Hrs	20.87 g	0.046 lb	Auto Restart Speed Sensor (Tach)	3 Wire Leads	Tubeaxial
CUI Devices CFM-5010V-155-310-11	12 VDC	10 mm	CE cURus TUV	70 °C	70 °C	-10 °C	-10 °C	0.386 mł/min	13.8 CFM	50 mm	50 mm	30.7 dB(A)	5800 RPM	13.8 VDC	4.5 V	980 mW	Polybutylene Terephthalate (PBT)	81 mA	70000 Hrs	20.87 g	0.046 lb	Auto Restart Locked Rotor Sensor	3 Wire Leads	Tubeaxial	0.15 in H2O	37.4 Pa
CUI Devices CFM-5010V-043-260	5 V	10 mm	CE cURus TUV	70 °C	70 °C	-10 °C	-10 °C			50 mm	50 mm	25.6 dB(A)	4800 RPM	6 VDC	3.5 VDC	1.36 W	Polybutylene Terephthalate (PBT)	0.98 A	70000 Hrs	20.87 g	0.046 lb	Auto Restart	2 Wire Leads	Tubeaxial	0.11 in H2O	27.4 Pa
CUI Devices CFM-5010V-043-260-11	5 V	10 mm	CE cURus TUV	70 °C	70 °C	-10 °C	-10 °C			50 mm	50 mm	25.6 dB(A)	4800 RPM	6 VDC	3.5 VDC	1.36 W	Polybutylene Terephthalate (PBT)	0.98 A	70000 Hrs	20.87 g	0.046 lb	Auto Restart Locked Rotor Sensor	3 Wire Leads	Tubeaxial	0.11 in H2O	27.4 Pa
CUI Devices CFM-5010-03-20	5 V		CE cURus TUV	70 °C	70 °C	-10 °C	-10 °C	0.451 mł/min	16.1 CFM	50 mm	50 mm	37.2 dB(A)	6100 RPM	5.75 VDC	4 VDC	1.4 W	Polybutylene Terephthalate (PBT)	0.21 A	70000 Hrs	20.87 g	0.046 lb	Auto Restart Speed Sensor (Tach)	3 Wire Leads	Tubeaxial	0.2 in H2O	49.8 Pa	Ball
CUI Devices CFM-5010V-155-310-20	12 VDC	10 mm	CE cURus TUV	70 °C	70 °C	-10 °C	-10 °C	0.386 mł/min	13.8 CFM	50 mm	50 mm	30.7 dB(A)	5800 RPM	13.8 VDC	4.5 V	980 mW	Polybutylene Terephthalate (PBT)	81 mA	70000 Hrs	20.87 g	0.046 lb	Auto Restart Speed Sensor (Tach)	3 Wire Leads	Tubeaxial	0.15 in H2O	37.4 Pa
CUI Devices CFM-5010V-143-260-11	12 VDC	10 mm	CE cURus TUV	70 °C	70 °C	-10 °C	-10 °C	0.386 mł/min	13.8 CFM	50 mm	50 mm	25.6 dB(A)	5800 RPM	13.8 VDC	4.5 V	0.7 W	Polybutylene Terephthalate (PBT)	81 mA	70000 Hrs	20.87 g	0.046 lb	Auto Restart Locked Rotor Sensor	3 Wire Leads	Tubeaxial	0.15 in H2O	37.5 Pa

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.13
		10	$ 5.92
		25	$ 5.75
		50	$ 5.41
		100	$ 4.86
		308	$ 4.79
		616	$ 4.49

Description

General part information

CFM-5010 Series

Fan Tubeaxial 5VDC Square - 50mm L x 50mm H omniCOOL™ Magnetic Sleeve 13.8 CFM (0.386m³/min) 3 Wire Leads
