DF1E-4P-2.5DS(35)

Active

Hirose Electric USA, Inc.

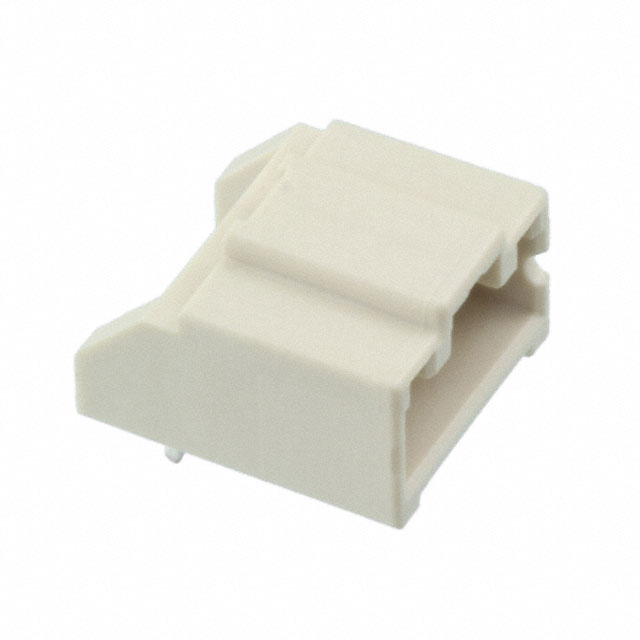

CONN HEADER R/A 4POS 2.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF1E-4P-2.5DS(35)

Active

Hirose Electric USA, Inc.

CONN HEADER R/A 4POS 2.5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF1E-4P-2.5DS(35)

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Length - Mating	0.177 in
Contact Length - Mating	4.5 mm
Contact Length - Post	0.114 in
Contact Length - Post	2.9 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Insulation Color	Natural
Insulation Height	0.315 in
Insulation Height	8 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

DF1E Series

Crimpers / Crimping Tools TOOL 24-28AWG PLUG HAND CRIMP

Part	Contact Finish	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Mounting Type	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Finish - Mating	Contact Material	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Termination	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Material Flammability Rating	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Shrouding	Number of Positions Loaded	Contact Type	Insulation Color	Number of Rows	Contact Shape	Style	Number of Positions	Contact Finish - Post
Hirose Electric USA, Inc. DF1E-2022SCA	Gold	Socket	20 AWG	22 AWG	Crimp
Hirose Electric USA, Inc. DF1E-2022PC	Tin	Pin	20 AWG	22 AWG	Crimp
Hirose Electric USA, Inc. DF1E-2022SC	Tin	Socket	20 AWG	22 AWG	Crimp
Hirose Electric USA, Inc. DF1E-3P-2.5DS(01)						Through Hole Right Angle	2.5 mm	0.098 in	Latch Holder	Gold	Brass	Header	0.203 Ám	8 Áin	0.315 in	8 mm	Solder	0.114 in	2.9 mm	3 A	UL94 V-0	Nylon Polyamide (PA)	-35 °C	85 °C	0.177 in	4.5 mm	Shrouded - 4 Wall	All	Male Pin	Natural	1	Square	Board to Cable/Wire
Hirose Electric USA, Inc. DF1E-2P-2.5DS(35)						Through Hole Right Angle	2.5 mm	0.098 in	Latch Holder		Brass	Header	1 µm	39.4 µin	0.315 in	8 mm	Solder	0.114 in	2.9 mm	3 A	UL94 V-0	Nylon Polyamide (PA)	-35 °C	85 °C	0.177 in	4.5 mm	Shrouded - 4 Wall		Male Pin	Natural	1	Square	Board to Cable/Wire	2	Tin
Hirose Electric USA, Inc. DF1E-7P-2.5DS(36)						Through Hole Right Angle	2.5 mm	0.098 in	Latch Holder	Gold	Brass	Header	0.203 Ám	8 Áin	0.315 in	8 mm	Solder	0.114 in	2.9 mm	3 A	UL94 V-0	Nylon Polyamide (PA)	-35 °C	85 °C	0.177 in	4.5 mm	Shrouded - 4 Wall		Male Pin	Natural	1	Square	Board to Cable/Wire	7
Hirose Electric USA, Inc. DF1E-5P-2.5DS(35)						Through Hole Right Angle	2.5 mm	0.098 in	Latch Holder		Brass	Header	1 µm	39.4 µin	0.315 in	8 mm	Solder	0.114 in	2.9 mm	3 A	UL94 V-0	Nylon Polyamide (PA)	-35 °C	85 °C	0.177 in	4.5 mm	Shrouded - 4 Wall		Male Pin	Natural	1	Square	Board to Cable/Wire		Tin
Hirose Electric USA, Inc. DF1E-8P-2.5DS(01)						Through Hole Right Angle	2.5 mm	0.098 in	Latch Holder	Gold	Brass	Header	0.203 Ám	8 Áin	0.315 in	8 mm	Solder	0.114 in	2.9 mm	3 A	UL94 V-0	Nylon Polyamide (PA)	-35 °C	85 °C	0.177 in	4.5 mm	Shrouded - 4 Wall	All	Male Pin	Natural	1	Square	Board to Cable/Wire	8
Hirose Electric USA, Inc. DF1E-10P-2.5DS(01)						Through Hole Right Angle	2.5 mm	0.098 in	Latch Holder	Gold	Brass	Header	0.203 Ám	8 Áin	0.315 in	8 mm	Solder	0.114 in	2.9 mm	3 A	UL94 V-0	Nylon Polyamide (PA)	-35 °C	85 °C	0.177 in	4.5 mm	Shrouded - 4 Wall	All	Male Pin	Natural	1	Square	Board to Cable/Wire	10
Hirose Electric USA, Inc. DF1E-4P-2.5DS(35)						Through Hole Right Angle	2.5 mm	0.098 in	Latch Holder		Brass	Header	1 µm	39.4 µin	0.315 in	8 mm	Solder	0.114 in	2.9 mm	3 A	UL94 V-0	Nylon Polyamide (PA)	-35 °C	85 °C	0.177 in	4.5 mm	Shrouded - 4 Wall		Male Pin	Natural	1	Square	Board to Cable/Wire	4	Tin
