1012405 SL001

Active

ALPHA WIRE

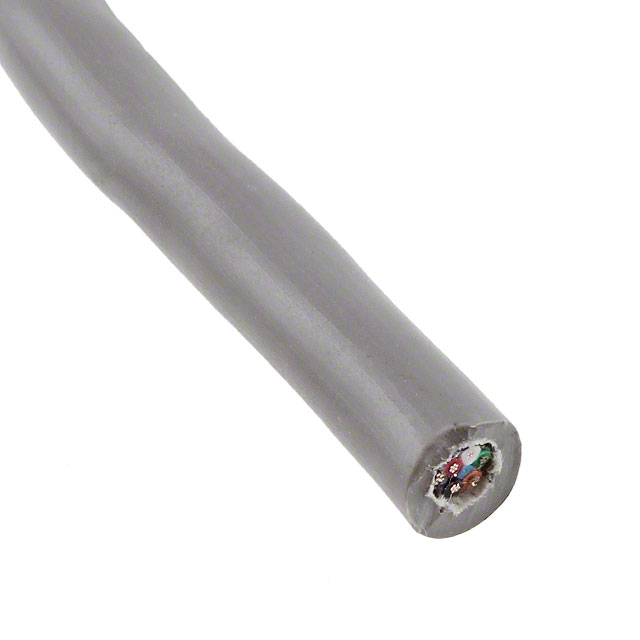

CABLE 5COND 24AWG SHLD 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 5COND 24AWG SHLD 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1012405 SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.194 in
Jacket (Insulation) Diameter [diameter]	4.93 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	5
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Cable Type	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Wire Gauge	Length [x]	Length [x]	Shield Material	Usage	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Conductor Insulation	Number of Conductors	Length	Length
ALPHA WIRE 1012405 SL005	Foil	4.83 mm	0.19 in	Drain Wire	32 AWG	7	Copper Tinned	Multi-Conductor	Slate	0.889 mm	0.035 in	100 %	24 AWG	30.5 m	100 ft	Aluminum	Computer	Poly-Vinyl Chloride (PVC)	-20 C	80 C	300 V	Poly-Vinyl Chloride (PVC)	5
ALPHA WIRE 1012405 SL001	Foil	4.93 mm	0.194 in	Drain Wire	32 AWG	7	Copper Tinned	Multi-Conductor	Slate	0.889 mm	0.035 in	100 %	24 AWG			Aluminum	Computer	Poly-Vinyl Chloride (PVC)	-20 C	80 C	300 V	Poly-Vinyl Chloride (PVC)	5	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Conductor Multi-Conductor Cable Slate 24 AWG Foil 1000.0' (304.8m)
