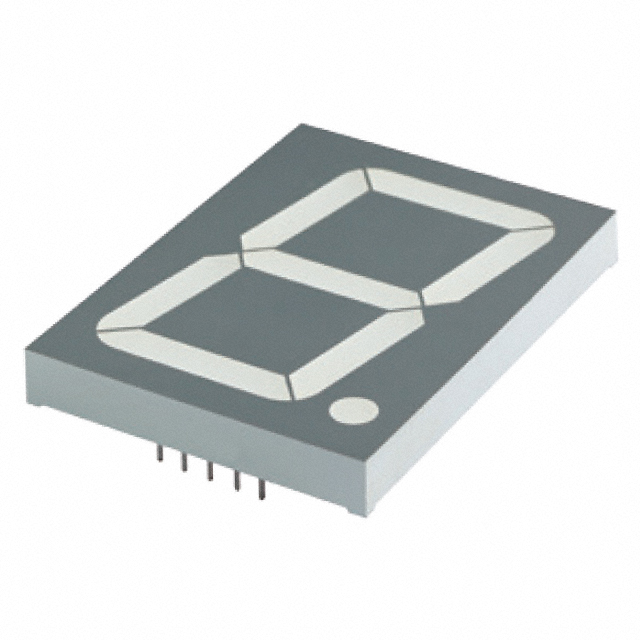

XDVG100A

Active

SunLED

DISPLAY 7SEG 3.98" SGL GRN 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDVG100A

Active

SunLED

DISPLAY 7SEG 3.98" SGL GRN 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XDVG100A

Color	Green
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	101.2 mm
Digit/Alpha Size	3.98 in
Display Type	7-Segment
Millicandela Rating	30 mcd
Number of Characters [custom]	1
Package / Case	107 mm
Package / Case	4.21 in
Package / Case	10-DIP
Power Dissipation (Max) [Max]	150 mW
Size / Dimension [x]	15 mm
Size / Dimension [x]	0.591 in
Size / Dimension [y]	3.543 in
Size / Dimension [y]	90 mm
Size / Dimension [z]	122 mm
Size / Dimension [z]	4.803 in

XDVG100 Series

Part	Current - Test	Package / Case	Package / Case	Package / Case	Digit/Alpha Size	Digit/Alpha Size	Common Pin	Color	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Millicandela Rating	Power Dissipation (Max) [Max]	Display Type	Number of Characters [custom]
SunLED XDVG100A	10 mA	107 mm	4.21 in	10-DIP	101.2 mm	3.98 in	Common Anode	Green	15 mm	122 mm	4.803 in	0.591 in	3.543 in	90 mm	30 mcd	150 mW	7-Segment	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	2004	$ 19.49

Description

General part information

XDVG100 Series

Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 8V 10mA 4.803" H x 3.543" W x 0.591" D (122.00mm x 90.00mm x 15.00mm) 10-DIP (4.210", 107.00mm)
