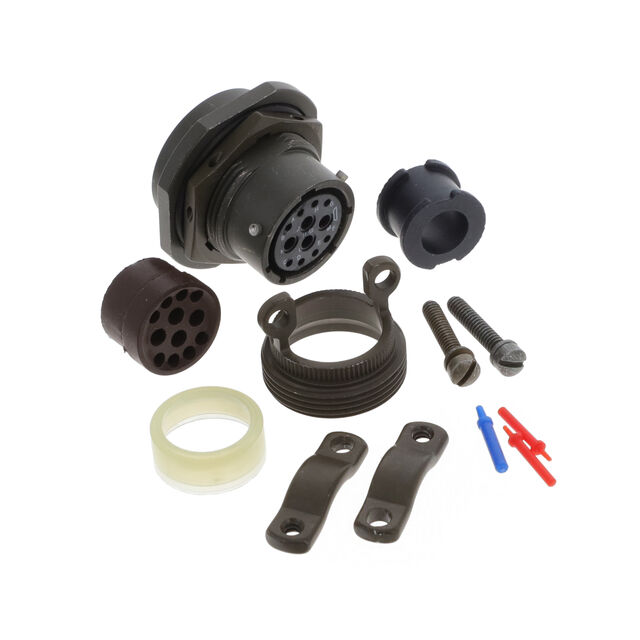

MS3114F14-12S

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	MS3114F14-12S

Applications	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	13 A, 7.5 A
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	14-12
Shielding	Unshielded
Voltage Rating	600 VAC

Part	Fastening Type	Mounting Feature	Applications	Shell Material	Shielding	Ingress Protection	Qualification	Insert Material	Orientation	Primary Material	Voltage Rating	Grade	Shell Finish	Color	Shell Size - Insert	Connector Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Positions	Contact Finish - Mating	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Features	Backshell Material, Plating
Amphenol Industrial Operations MS3114F14-12S	Bayonet Lock	Bulkhead - Front Side Nut	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Aluminum Alloy	Unshielded	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	N	Metal	600 VAC	Military	Olive Drab Chromate over Cadmium	Olive Drab	14-12	Receptacle Female Sockets	Copper Alloy	-55 °C	125 °C	7.5 A 13 A	12	Gold
Amphenol Industrial Operations MS3114F14-15S	Bayonet Lock	Bulkhead - Front Side Nut	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Aluminum	Unshielded	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	N	Metal		Military	Olive Drab Chromate over Cadmium	Olive Drab		Receptacle Female Sockets	Copper Alloy	-55 °C	125 °C		15	Gold	14	15	Backshell Cable Clamp	Aluminum Olive Drab Chromate over Cadmium

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Receptacle, Female Sockets Solder Cup
