LBW7MB-M1T6B

Active

IDEC

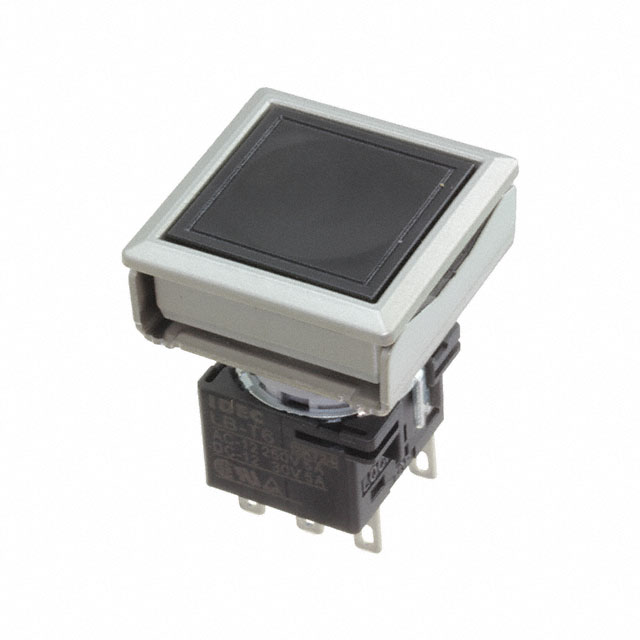

INDUSTRIAL PUSHBUTTON SWITCH, LBW SERIES, DPDT, MOMENTARY, SQUARE FLUSH, BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

LBW7MB-M1T6B

Active

IDEC

INDUSTRIAL PUSHBUTTON SWITCH, LBW SERIES, DPDT, MOMENTARY, SQUARE FLUSH, BLACK

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LBW7MB-M1T6B

Actuator Marking	No Marking
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	5 A
Electrical Life	50000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	2000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	22.5 mm
Panel Cutout Dimensions [y]	22.5 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LBW7MB Series

Part	Mechanical Life	Current Rating (Amps)	Ingress Protection	Termination Style	Termination Style	Termination Style	Type	Color - Actuator/Cap	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Electrical Life	Voltage Rating - AC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Voltage Rating - DC	Circuit
IDEC LBW7MB-M1T5G	2000000 Cycles	5 A	IP65 - Dust Tight Water Resistant	0.11 in	Quick Connect Solder	2.8 mm	Standard	Green	On-Mom	-25 °C	60 °C	No Marking	50000 Cycles	125 V	22.5 mm	22.5 mm	Panel Mount Front	30 V	SPDT
IDEC LBW7MB-A1T7W	250000 Cycles	5 A	IP65 - Dust Tight Water Resistant	0.11 in	Quick Connect Solder	2.8 mm	Standard	White	On-On	-25 °C	60 °C	No Marking	50000 Cycles	125 V	22.5 mm	22.5 mm	Panel Mount Front	30 V	3PDT
IDEC LBW7MB-A1T2R	250000 Cycles	100 mA	IP65 - Dust Tight Water Resistant	0.11 in	Quick Connect Solder	2.8 mm	Standard	Red	On-On	-25 °C	60 °C	No Marking	50000 Cycles	125 V	22.5 mm	22.5 mm	Panel Mount Front	30 V	DPDT
IDEC LBW7MB-M1T7R	2000000 Cycles	5 A	IP65 - Dust Tight Water Resistant	0.11 in	Quick Connect Solder	2.8 mm	Standard	Red	On-Mom	-25 °C	60 °C	No Marking	50000 Cycles	125 V	22.5 mm	22.5 mm	Panel Mount Front	30 V	3PDT
IDEC LBW7MB-M1T3VG	2000000 Cycles	100 mA	IP65 - Dust Tight Water Resistant		PC Pin		Standard	Green	On-Mom	-25 °C	60 °C	No Marking	50000 Cycles	125 V	22.5 mm	22.5 mm	Panel Mount Front	30 V	3PDT
IDEC LBW7MB-A1T5S	250000 Cycles	5 A	IP65 - Dust Tight Water Resistant	0.11 in	Quick Connect Solder	2.8 mm	Standard	Blue	On-On	-25 °C	60 °C	No Marking	50000 Cycles	125 V	22.5 mm	22.5 mm	Panel Mount Front	30 V	SPDT
IDEC LBW7MB-M1T7S	2000000 Cycles	5 A	IP65 - Dust Tight Water Resistant	0.11 in	Quick Connect Solder	2.8 mm	Standard	Blue	On-Mom	-25 °C	60 °C	No Marking	50000 Cycles	125 V	22.5 mm	22.5 mm	Panel Mount Front	30 V	3PDT
IDEC LBW7MB-A1T3VW	250000 Cycles	100 mA	IP65 - Dust Tight Water Resistant		PC Pin		Standard	White	On-On	-25 °C	60 °C	No Marking	50000 Cycles	125 V	22.5 mm	22.5 mm	Panel Mount Front	30 V	3PDT
IDEC LBW7MB-M1T6B	2000000 Cycles	5 A	IP65 - Dust Tight Water Resistant	0.11 in	Quick Connect Solder	2.8 mm	Standard	Black	On-Mom	-25 °C	60 °C	No Marking	50000 Cycles	125 V	22.5 mm	22.5 mm	Panel Mount Front	30 V	DPDT
IDEC LBW7MB-M1T6R	2000000 Cycles	5 A	IP65 - Dust Tight Water Resistant	0.11 in	Quick Connect Solder	2.8 mm	Standard	Red	On-Mom	-25 °C	60 °C	No Marking	50000 Cycles	125 V	22.5 mm	22.5 mm	Panel Mount Front	30 V	DPDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 52.79
LCSC	Piece	1	$ 51.21
		200	$ 19.82
		500	$ 19.12
		1000	$ 18.78
Newark	Each	1	$ 60.86
		5	$ 56.22
		10	$ 52.13
		25	$ 48.03
		50	$ 45.03
		100	$ 42.58
		250	$ 38.76

Description

General part information

LBW7MB Series

Pushbutton Switch DPDT Standard Panel Mount, Front

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
