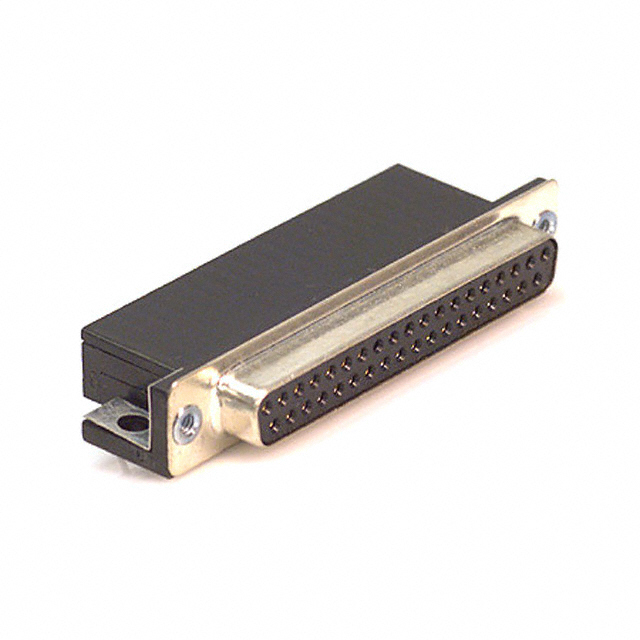

177-037-212-171

Obsolete

MH Connectors

CONN D-SUB RCPT 37POS R/A SLDR

Search across all available documentation for this part.

Obsolete

MH Connectors

CONN D-SUB RCPT 37POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	177-037-212-171

Backset Spacing	0.59 "
Backset Spacing	14.99 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyester, Glass Filled
Features	Ground Strap
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Tin Plated, Metal
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

Part	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Connector Type	Contact Material	Number of Rows	Contact Finish Thickness	Backset Spacing	Backset Spacing	Features	Number of Positions	Mounting Type	Contact Type	Shell Material, Finish	Flange Feature	Color	Connector Style	Current Rating (Amps)	Termination	Dielectric Material	Shell Size, Connector Layout
MH Connectors 177-037-212-171	Gold	105 ░C	-55 °C	UL94 V-0	Receptacle Female Sockets	Phosphor Bronze	2	Flash	0.59 "	14.99 mm	Ground Strap	37	Panel Mount Right Angle Through Hole	Signal	Metal Tin Plated	Housing/Shell (4-40)	Black	D-Sub	5 A	Solder	Polyester Glass Filled	4 (DC C)
MH Connectors 177-037-112-161	Gold	105 ░C	-55 °C	UL94 V-0	Male Pins Plug	Phosphor Bronze	2	Flash	0.59 "	14.99 mm	Ground Strap Grounding Indents	37	Panel Mount Right Angle Through Hole	Signal	Metal Tin Plated	Housing/Shell (Unthreaded)	Black	D-Sub	5 A	Solder	Polyester Glass Filled	4 (DC C)
MH Connectors 177-037-212-371	Gold	105 ░C	-55 °C	UL94 V-0	Receptacle Female Sockets	Phosphor Bronze	2	Flash	0.59 "	14.99 mm	Board Lock Ground Strap	37	Panel Mount Right Angle Through Hole	Signal	Metal Tin Plated	Housing/Shell (4-40)	Black	D-Sub	5 A	Solder	Polyester Glass Filled	4 (DC C)
MH Connectors 177-037-212-181	Gold	105 ░C	-55 °C	UL94 V-0	Receptacle Female Sockets	Phosphor Bronze	2	Flash	0.59 "	14.99 mm	Ground Strap	37	Panel Mount Right Angle Through Hole	Signal	Metal Tin Plated	Female Screwlock (4-40) Mating Side	Black	D-Sub	5 A	Solder	Polyester Glass Filled	4 (DC C)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

37 Position D-Sub Receptacle, Female Sockets Connector
