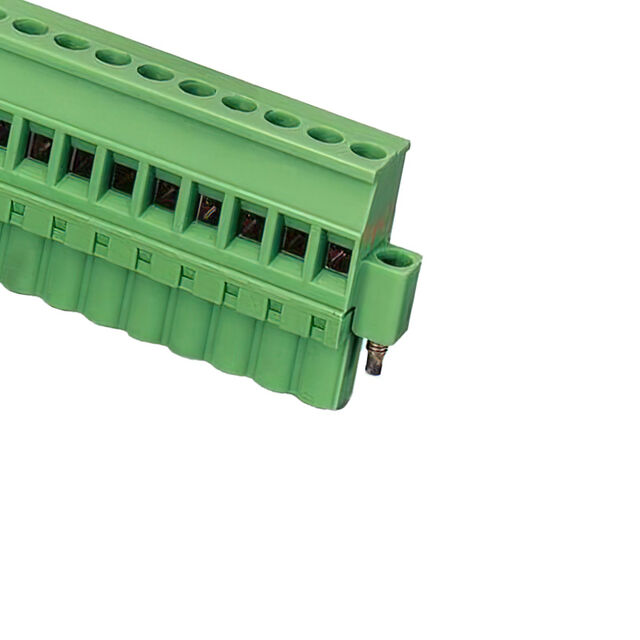

PLUGGABLE TERMINAL BLOCKS MVSTBW 2.5 HC/ 4-STF

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS MVSTBW 2.5 HC/ 4-STF

Technical Specifications

Parameters and characteristics for this part

Specification	1912977

Color	Green
Contact Mating Finish	Tin
Current - IEC	16 A
Current - UL	16 A
Features	Retention Latches (Non-Wire Side), Mating Flange
Housing Material	Polyamide (PA), Nylon
Insulation Height	1.024 "
Insulation Height	26.01 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	4
Pitch [x]	5 mm
Pitch [x]	0.197 in
Plug Wire Entry	270 °
Positions Per Level	4
Screw Size	M3
Termination Style	Screw - Rising Cage Clamp
Torque - Screw [Max]	0.6 Nm
Torque - Screw [Max]	5.3 Lb-In
Torque - Screw [Min]	4.4 Lb-In
Torque - Screw [Min]	0.5 Nm
Type	Plug, Female Sockets
Voltage - IEC	630 V
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm² [Max]	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²
Wire Strip Length	7 mm

Pluggable Terminal Blocks MVSTBW 2.5 HC/ 4-STF

Part	Features	Plug Wire Entry	Color	Mounting Type	Screw Size	Contact Mating Finish	Positions Per Level	Wire Strip Length	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Insulation Height	Insulation Height	Type	Voltage - UL	Housing Material	Pitch [x]	Pitch [x]	Current - UL	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Termination Style	Current - IEC	Voltage - IEC	Number of Levels	Material Flammability Rating	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Positions
Phoenix Contact 1912977	Mating Flange Retention Latches (Non-Wire Side)	270 °	Green	Free Hanging (In-Line)	M3	Tin	4	7 mm	30 AWG	12 AWG	1.024 "	26.01 mm	Plug Female Sockets	300 V	Polyamide (PA) Nylon	5 mm	0.197 in	16 A	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	Screw - Rising Cage Clamp	16 A	630 V	1	UL94 V-0	0.2 mm²	2.5 mm²	4
